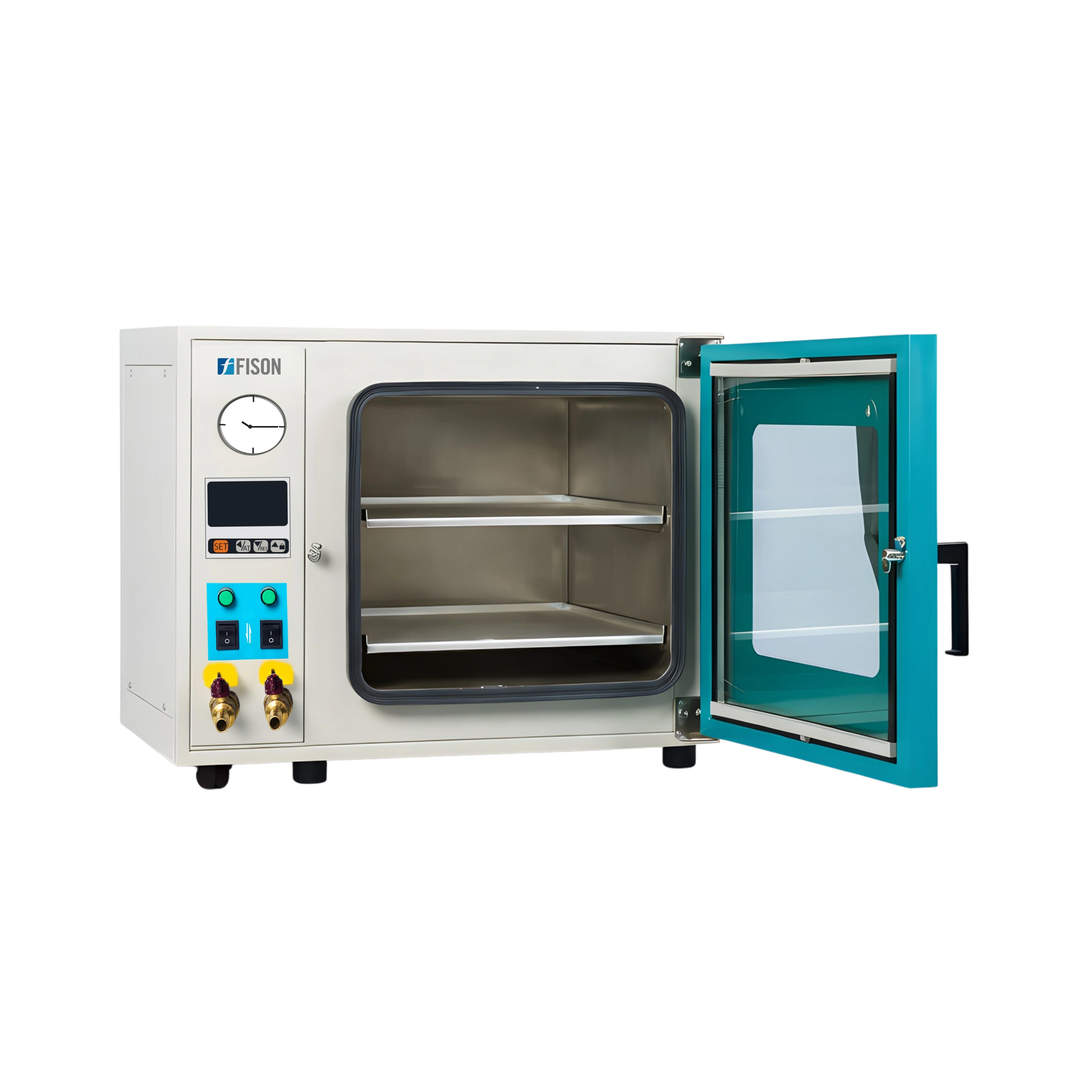

Vacuum oven FM-VO-A200
Vacuum oven FM-VO-A200 comes with 8 L chamber capacity and dual layer tempered glass door for clear observation of the sample during process. It offers microprocessor PID controller system with over temperature alarm and timing function ensures precise and reliable Control. Designed with rotary vane vacuum pump as optional accessory and LCD digital display to observe temperature. The outer of the oven is made using 304 stainless steel sheets that are enamel and painted to prevent from corrosion. Designed for drying of materials that are heat sensitive, reactive with oxidation reactions, prone to contamination due to excess water level. For the rapid drying of the materials, the controlled atmosphere can be created using the inert gases.
Specifications
| Chamber volume | 8 L |
| Temperature range | RT+10 to 200°C (250°C) |
| Working temperature | +5 to 40℃ |
| Temperature resolution | 0.1°C |
| Temperature stability | ±0.1°C |
| Chamber material | 304 Stainless Steel |

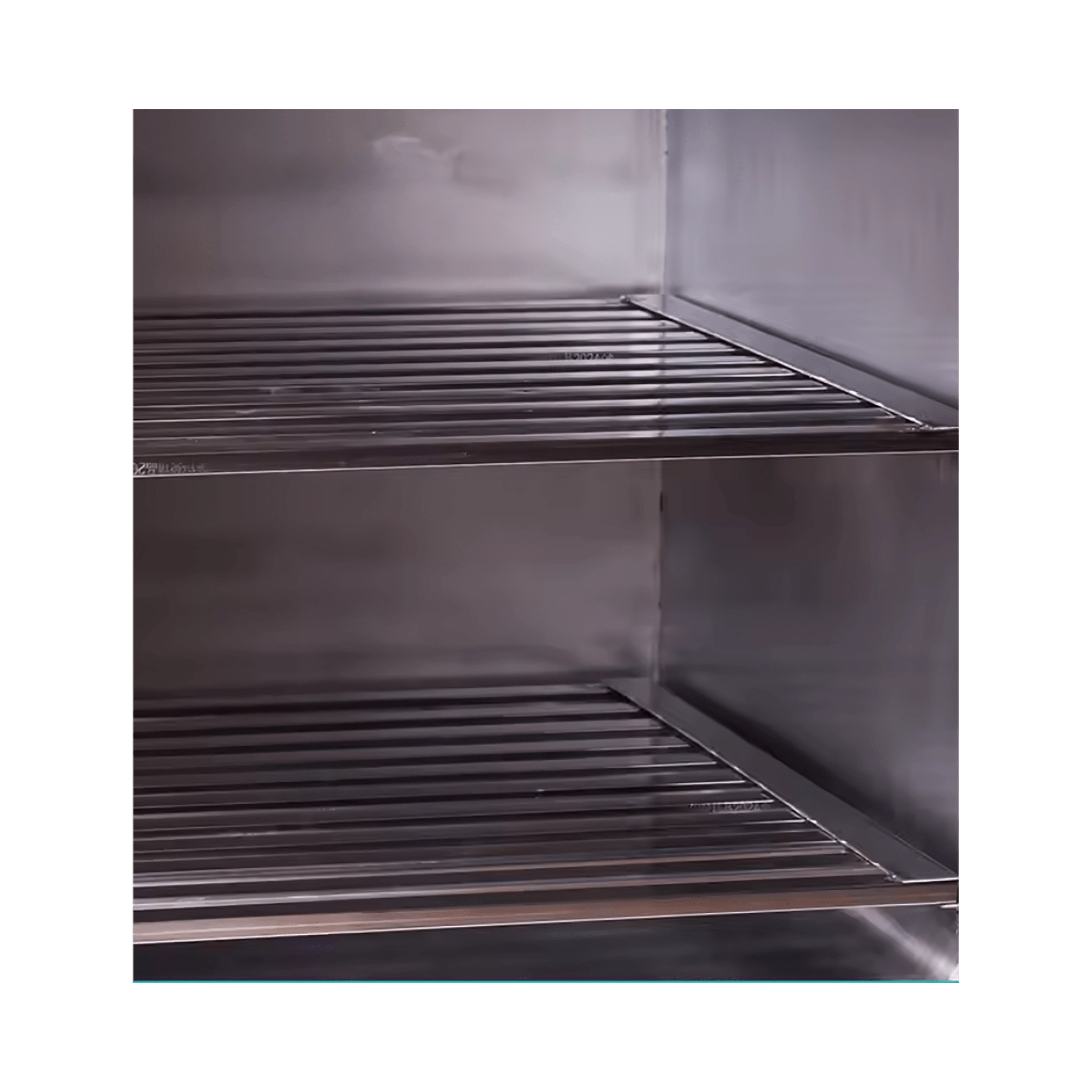

| Shelves | 1 pcs |
| Shelves material | Spray-paint Anti-corrosion |
| Power | 400 W |
| Power supply | 220V, 50 Hz /110V, 60 Hz |
| Interior dimension (W × D × H) | 200 × 200 × 200 mm |
| Overall dimension (W × D × H) | 630 × 420 × 460 mm |
| Net weight | 25 kg |
| Gross weight | 35 kg |
Features
- Designed with rotary vane vacuum pump as optional accessory
- Independent temperature controlling shelves
- PID controller system with over temperature alarm and timing function ensures precise and reliable control

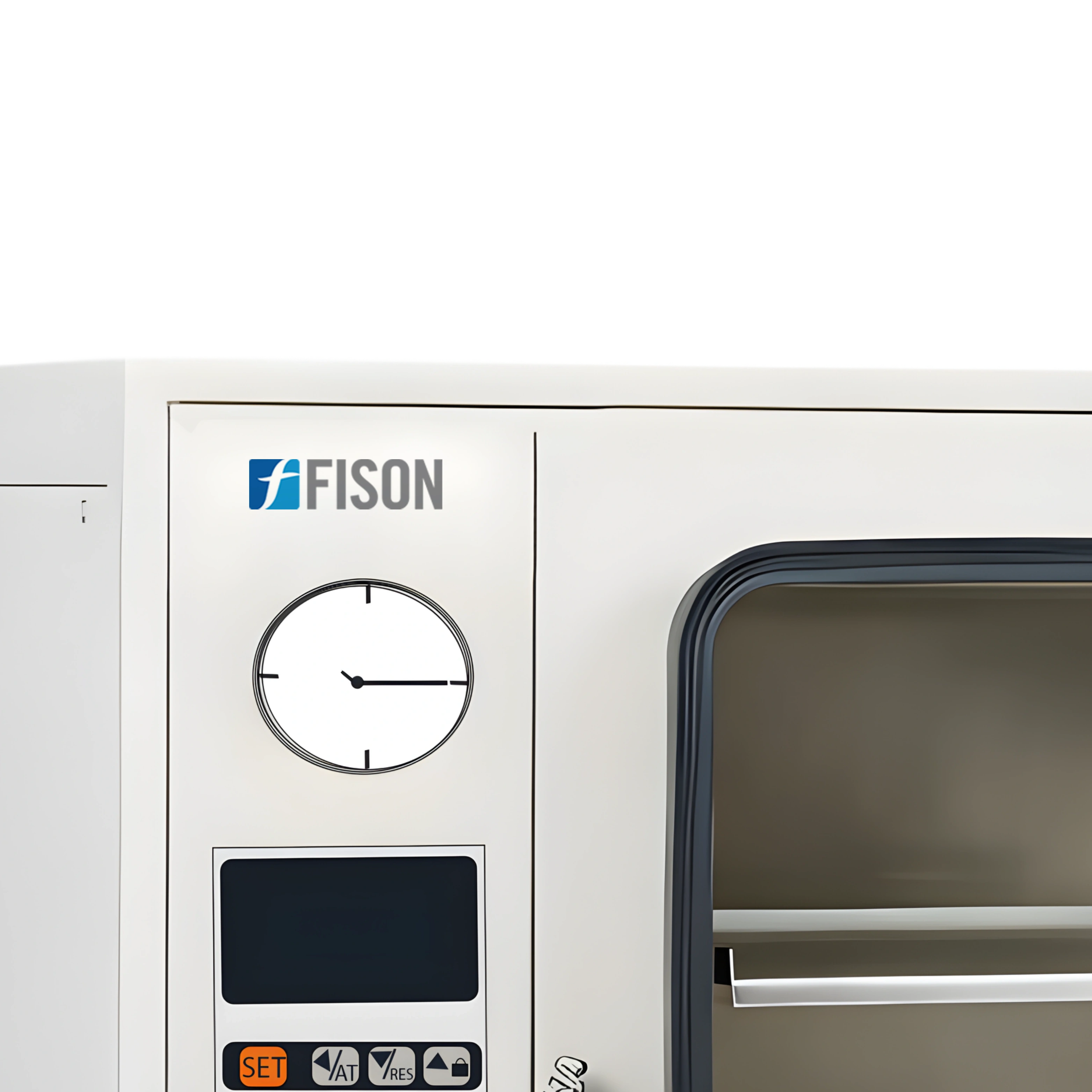

- Designed with LCD display
- Chamber material used 304 Stainless Steel
- Offers effective, gentle drying without damaging the material being dried
- Vacuum drying minimizes the risk of scaling and for formation of oxidation residues
- Door with handle, double layer explosion proof glass, and observation window for ease of operation
- Silicon rubber strip offers tight sealing, good elasticity, and high temperature resistant, non-aging
- Temperature range is from RT+10 to 250°C
- Shock proof, anticorrosion and antimagnetic analog vacuum gauge shows stable, precise reading of vacuum with range 0 to 0.1 MPa
- Equipped with uniform heat distribution from block type heater attached to the chamber exterior to anodized aluminum shelves
- Vacuum tube makes room temperature uniform, avoids organic connection with fire burning
- Microprocessor PID controller system, Temperature calibration and automatic tuning
- Monitoring and timing are more accurate and stable
- Over temperature and ground protection are provided
Applications
- Vacuum Oven used in mining, medical, pharmacy, biology, agriculture, biochemical, chemical industry, scientific research across for drying powder and other material, baking, disinfecting and sterilizing of all kinds of glass wares and the complex composition of easily oxidized material items for fast and efficient drying.
Accessories Optional
Accessories no. Name 1 Rotary Vane Vacuum Pump
