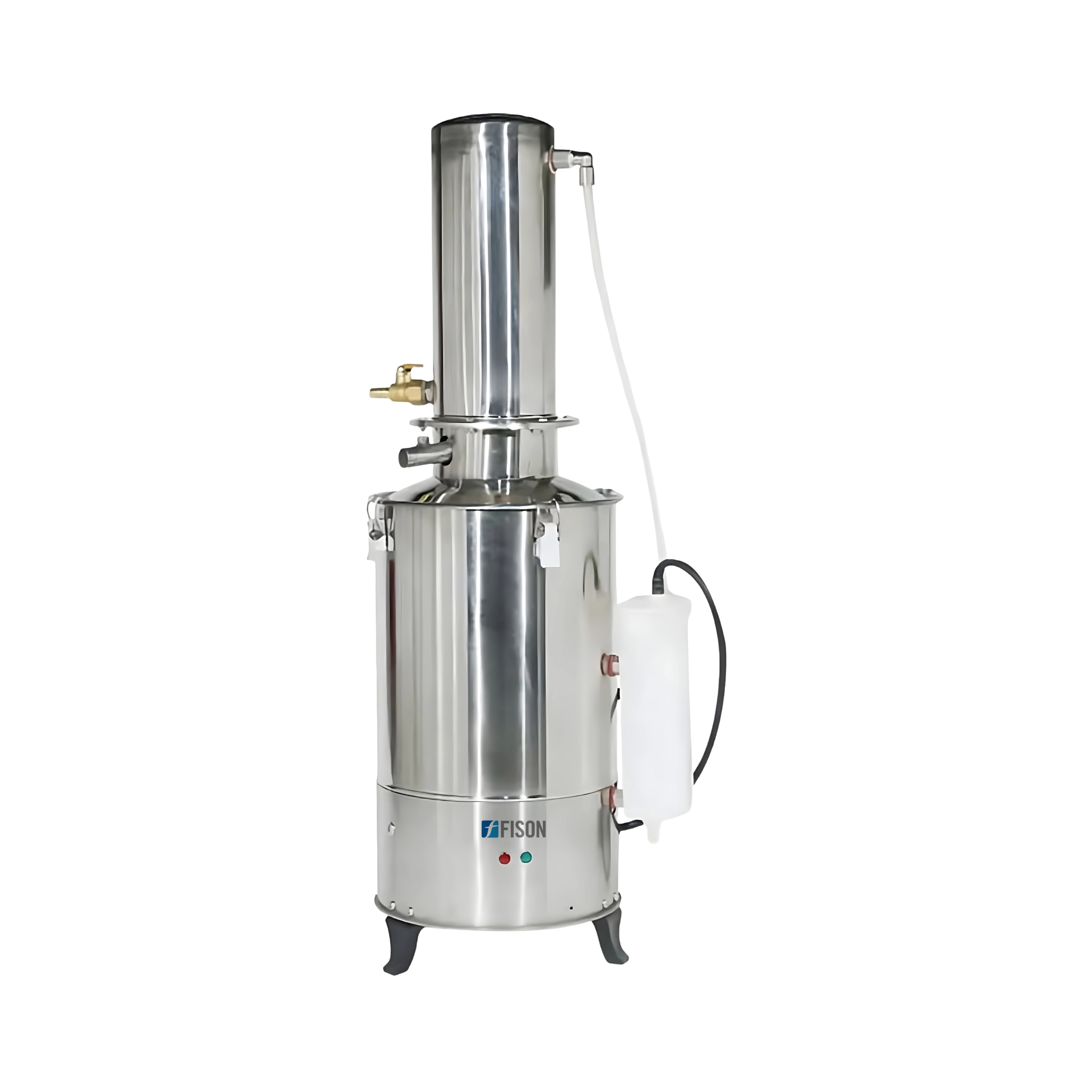

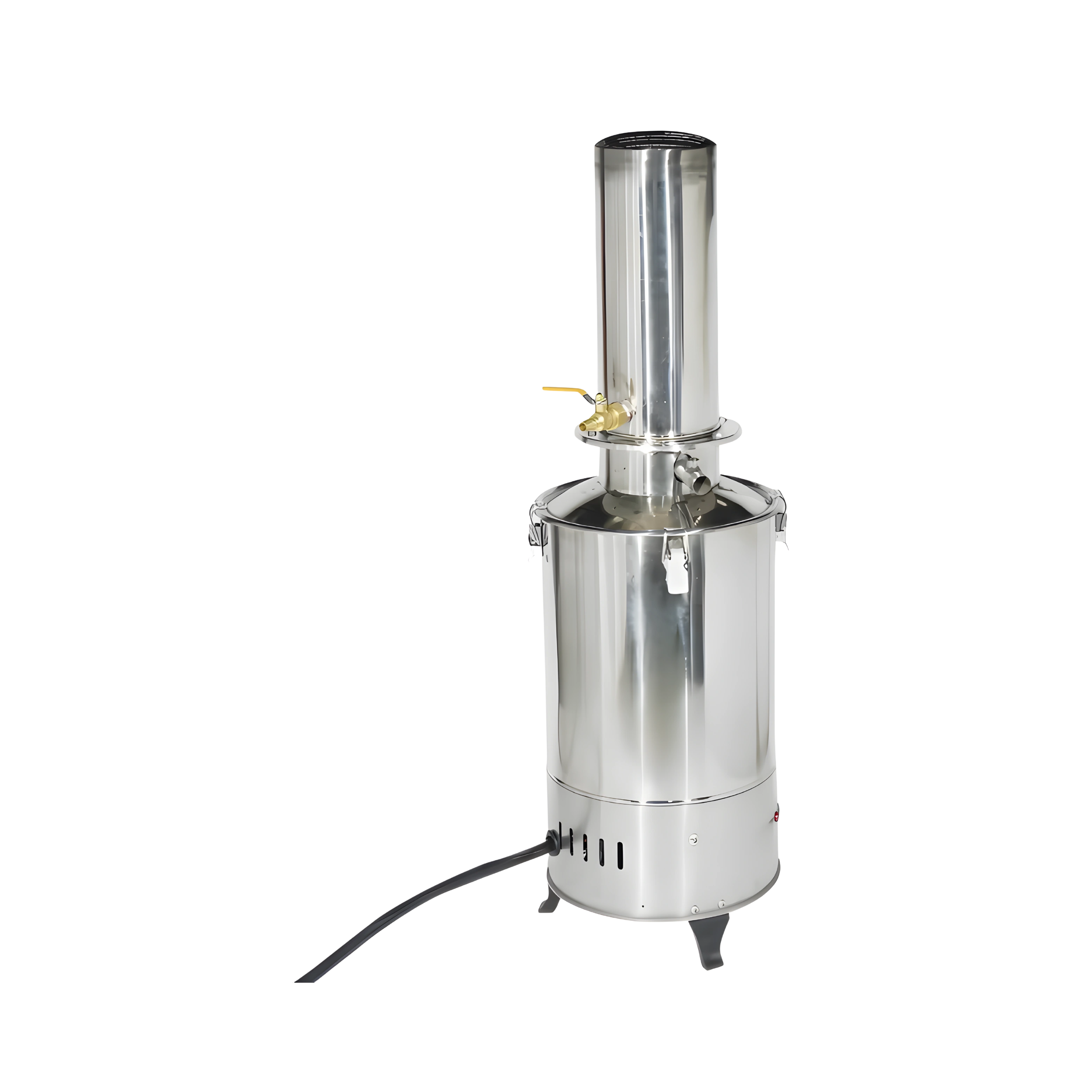

Water Distillation Unit FM-WDU-A100
Water Distillation Unit FM-WDU-A100 is provided with a 4.8 L storage tank and offers a distillation capacity of 5 liters per hour. This unit utilizes tap water as source water for purification. It employs an electric heating distillation process to generate distilled water by removing impurities and contaminants from the original tap water. Features an automatic low water alarm to prevent potential heater damage.
Specifications
| Distillation Capacity | 5 L/H |
| Conductivity at 20℃ | 2.72 µs/cm |
| Storage Tank | About 4.8 L |
| Water Consumption | About 1:14 (1L distilled water need 14L working water) |
| Exterior Size | 305 × 730 mm |
| Power Consumption | 4.5 kW |
| Power Supply | 220 V |
| Packaging Dimension (L×W×H) | 380 × 350 × 870 mm |
| Net Weight | 6 Kg |
| Gross Weight | 9.5 Kg |
Features
- Crafted using stainless steel, making it corrosion-resistant and durable
- Integrated with a water shortage protection function
- Incorporates an automatic water refilling function for efficient operation
- Equipped with a float switch for automatic control of the power supply
- Fitted with an evaporation bucket for controlled transformation of water to vapor
- Designed with a flow indicator lamp to alert users in the absence of water
Applications
- Water Distillation Unit is used to generate purified water using the distillation process. It is utilized in chemical industries, medical treatment, pharmaceutical industries, power plants, and in research laboratories.
