Water Distillation Unit FM-WDU-A101

Water Distillation Unit FM-WDU-A101

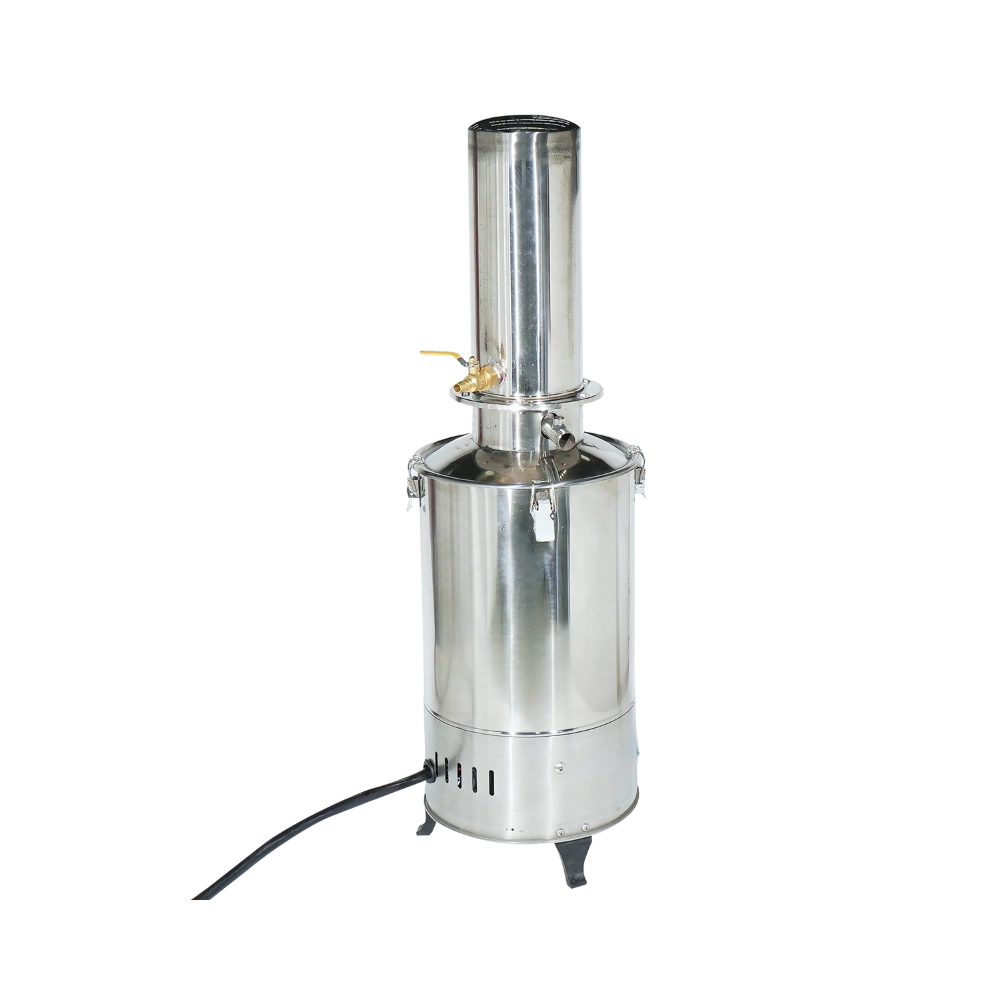

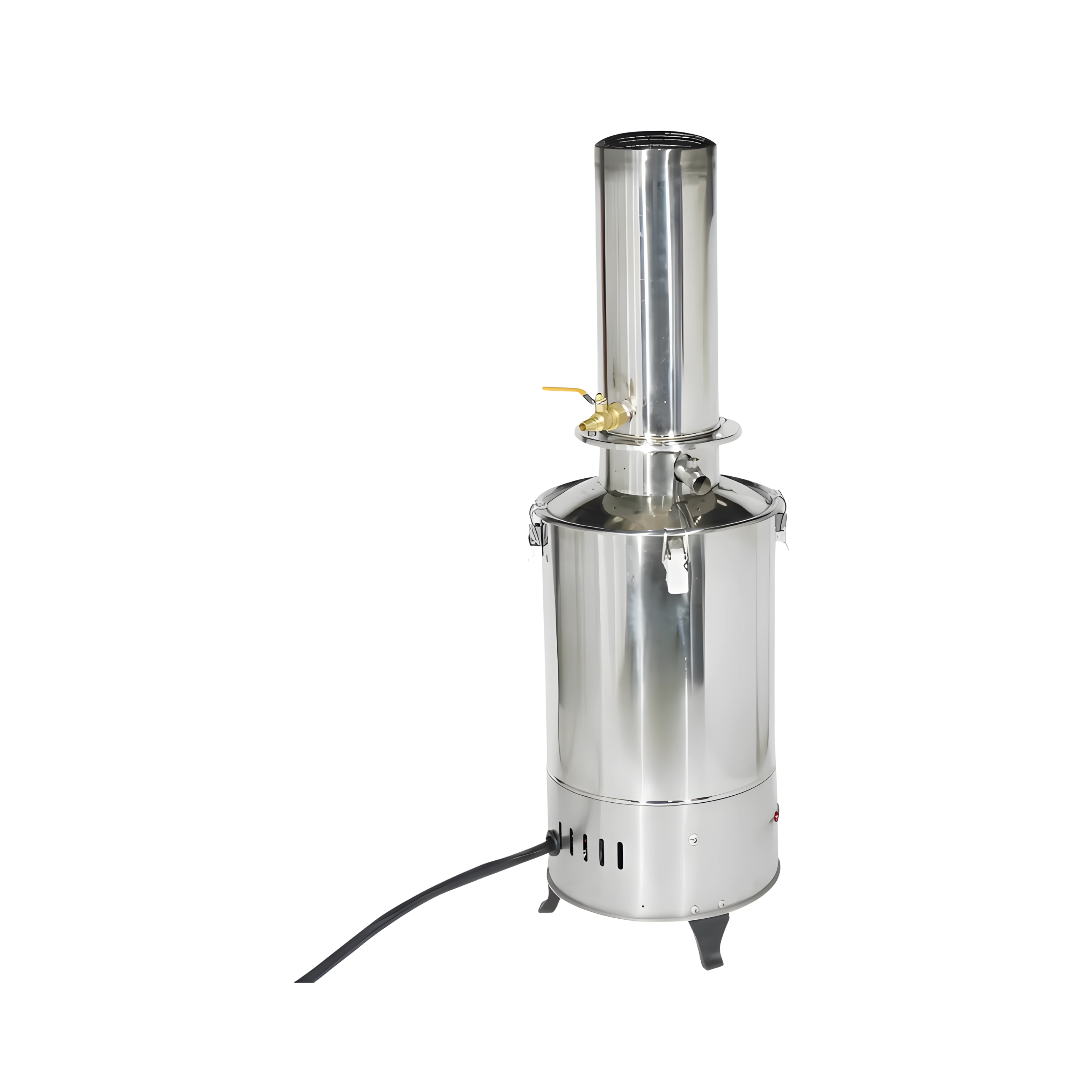

Water Distillation Unit FM-WDU-A101 is a spacious-free water distiller designed with a capacity of 10 L to purify water using electric heating. Our distiller is improved with precision, including an evaporator, condenser, and heating pipes to make germ-free distilled water. Enhanced with automatic water supply function, offer seamless operation. Utilized with rising floater, keeps operations seamless by replenishing water during low conditions.

Specifications

Capacity 10 L
Voltage 380
Output power (L/H) ≥10 (L/H)
Heating power (Kw) 7.5 (Kw)
Dimension (L×W×H) 390 × 370 × 860 mm
Net weight (kg) 8 kg
Gross weight (kg) 11 kg

Features

  • Anti-corrosion and age-resistant properties guarantee ease of operation
  • Equipped with Coiled stainless steel tube condenser for excellent heat exchange
  • Specialized water level design triggers an alarm system in low water conditions for enhanced safety
  • Visible indicator light provides instant feedback on the equipment's operational status
  • Ensures convenience in use and consistently reliable functionality

Applications

  • Water Distillation Unit is employed for diverse applications, serving purposes in medical facilities, sanitary environments, pharmaceutical settings, electroplating processes, and laboratory applications.

Alternative Models Of Water Distillation Unit

Water Distillation Unit FM-WDU-A100

  • Distillation Capacity: 5 L/H
  • Conductivity at 20℃: 2.72 µs/cm
  • Storage Tank: About 4.8 L
Catalog

Water Distillation Unit FM-WDU-A102

  • Capacity: 20 L
  • Output: ≥ 20 L/H
  • Power Supply: 380 V
Catalog

Water Distillation Unit FM-WDU-A103

  • Water Yield: 10L/H
  • Heating Power: 7.5KW
  • Voltage: 380V 50Hz
Catalog

Automatic Distillation Unit

Fison Automatic Distillation Units employ fully automated evaluation of fluid boiling characteristics. They facilitate real-time monitoring of distillation parameters, such as temperature and pressure. They are incorporated with advanced AI algorithms for operational regulation. Their safety mechanisms include overheat protection, fire detection and thermal cut-off. We offer Automatic Distillation Units with barometric pressure corrected sensors and modern compressors.

Automatic Distillation Unit FM-ADU-A100

  • Heating Power : 2 kW
  • Cooling Power : 0.5 kW
  • Steam Temperature Range : 0 to 400℃
Catalog

Automatic Distillation Unit FM-ADU-B100

  • Temperature range of bath : 0 to 60℃
  • Temperature control precision of bath : ±0.5℃
  • Temperature control precision of receiving chamber : ±1℃
Catalog
