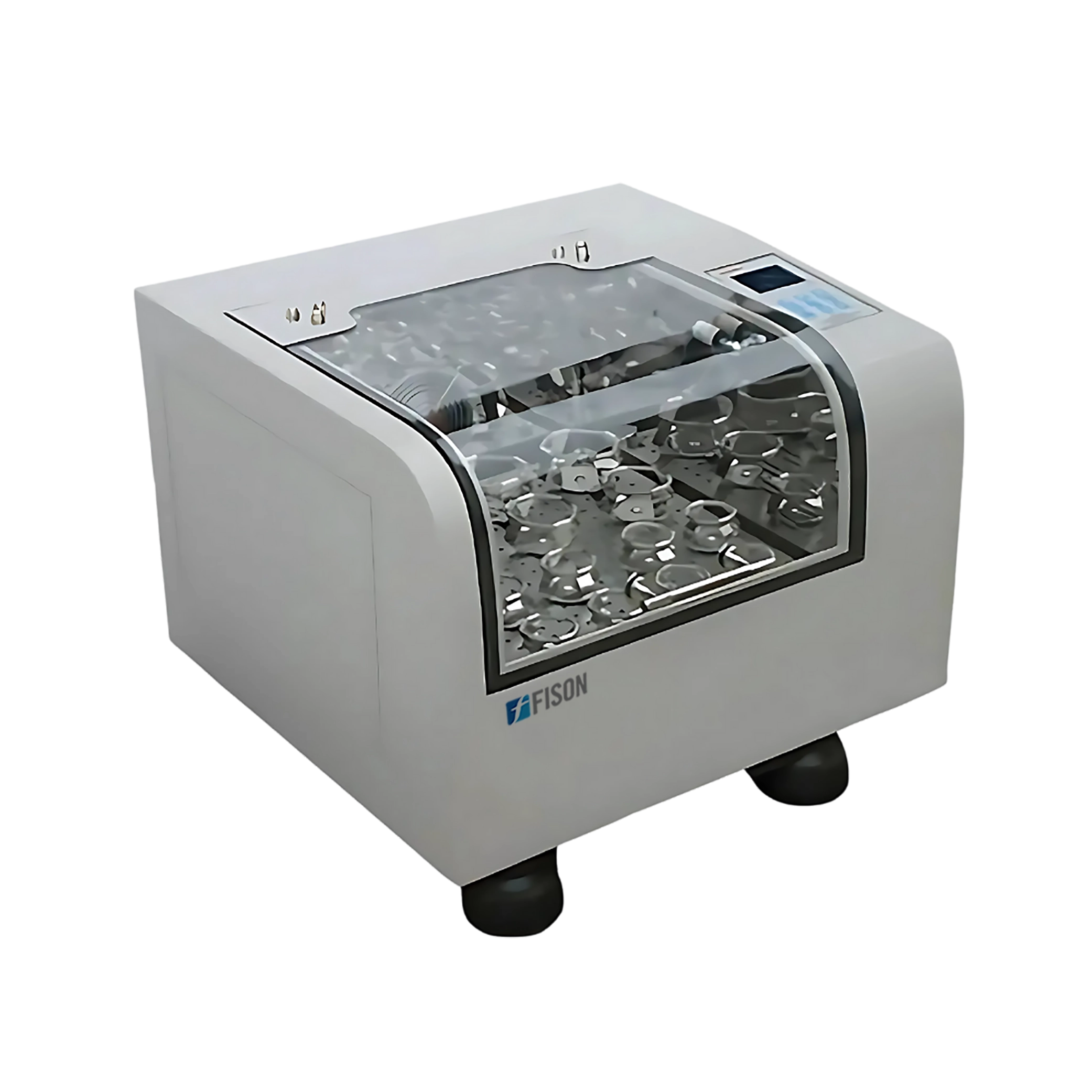

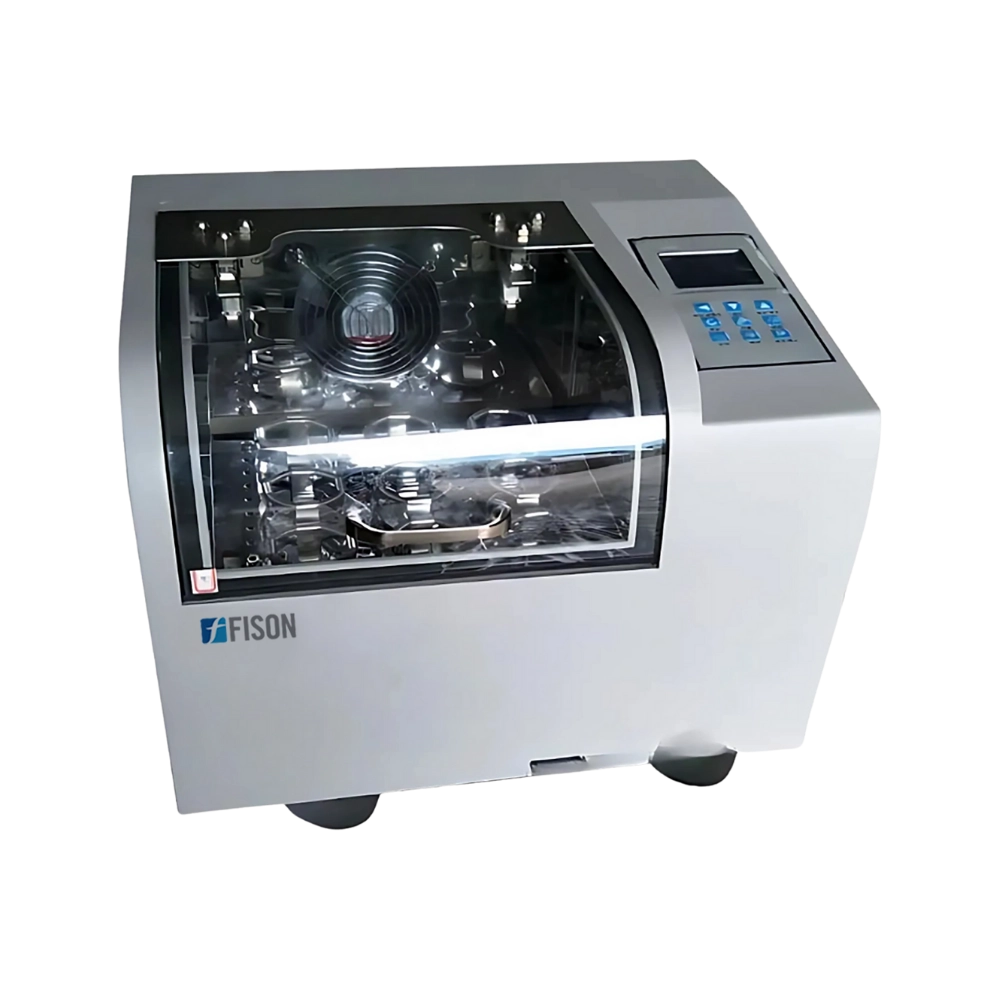

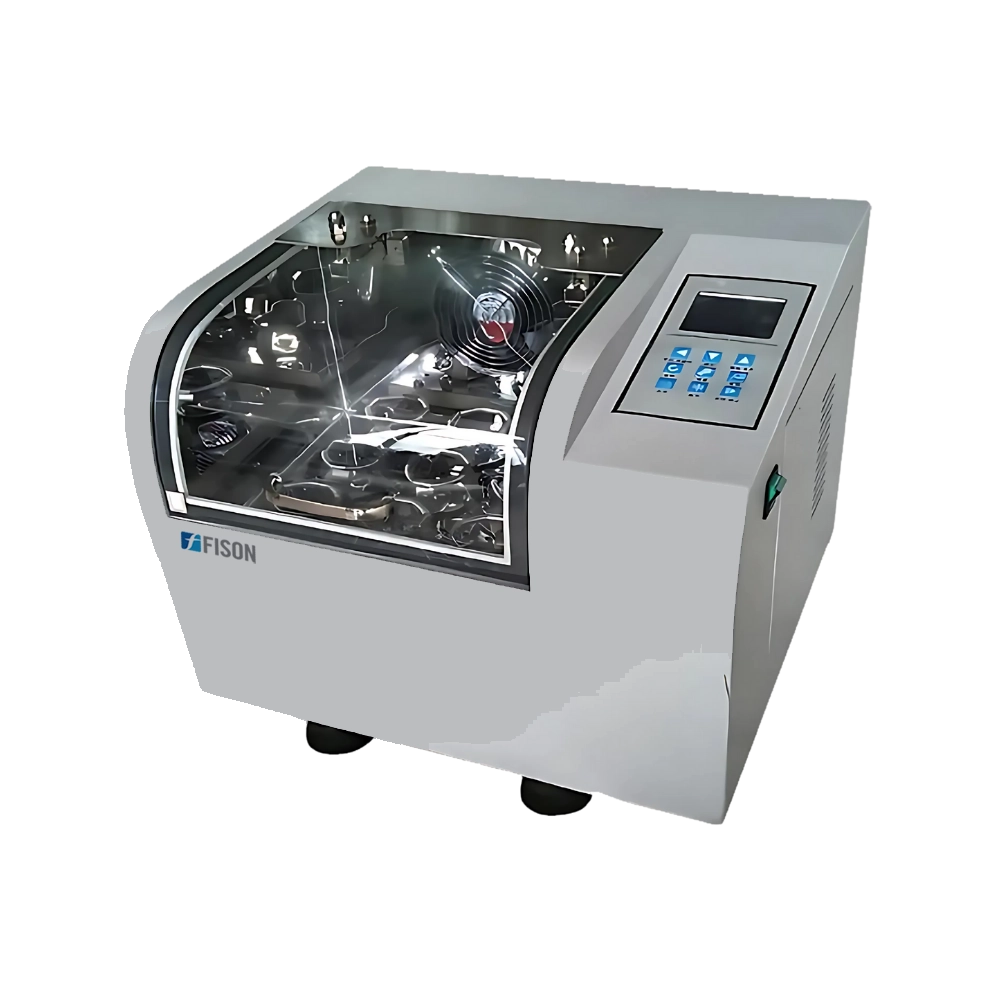

Benchtop Shaking Incubator FM-SI-A100
Benchtop Shaking Incubator FM-SI-A100 is a microprocessor controlled multifunctional incubator, integrated with incubator and shaker. It offers 20 L chamber capacity and 30 to 300 rpm speed range, performs automatic liquid shaking, separation and temperature control (incubation) function together. The shaker plate works using two techniques, low speed big range rotation or high speed point vibration. Designed with static sound, durable ABS plastic body and transparent armoured glass visual window.
Specifications
| Chamber capacity | 20 L |
| Rotating speed range | 30 to 300 rpm |
| Speed accuracy | ± 1 rpm |
| Vibration amplitude | 26 mm |
| Standard Flasks Configuration | 100 ml × 9 |
| Maximum Flasks Configuration | 50 ml × 12, 100 ml × 9 |
| Timing range | 0 to 999 h |
| Temperature control range | Ambient temperature 5°C to 60°C |
| Temperature uniformity | ± 1°C |
| Display mode | LCD |
| Tray dimension | 295 mm × 245 mm |
| Tray quantity | 1 pcs |
| Power | 220 W |
| Power supply | AC 220 V to 240 V, 50 Hz to 60 Hz |
| Internal dimension | 340 × 285 × 200 mm |
| External dimension | 460 × 410 × 390 mm |
| Net weight | 31 kg |
| Gross weight | 45 kg |
Features
- Equipped with ABS plastic body cover, transparent glass window and stainless steel chamber
- Back light big size LCD control panel
- Memory function for operating parameter
- Avoid repeated or mistaken operation by code lock
- Recovery with power connect uninfluenced from electricity cut off
- Auto stop protection when the door opens ensure security of operator
- Gas pull rod for easy opening of door
- Auto stop at heating and warning when temperature over pre-setting is 3°C
- Brushless DC motor for smooth functioning
- Automatic temperature adjustment avoid tedious temperature adjustment setting
- Heating rate setting as per test requirements
Applications
- Used for environmental treatment, bacterial cultivation, fermentation, hybridization, biological chemical reaction, enzyme and cell tissue culture research.
