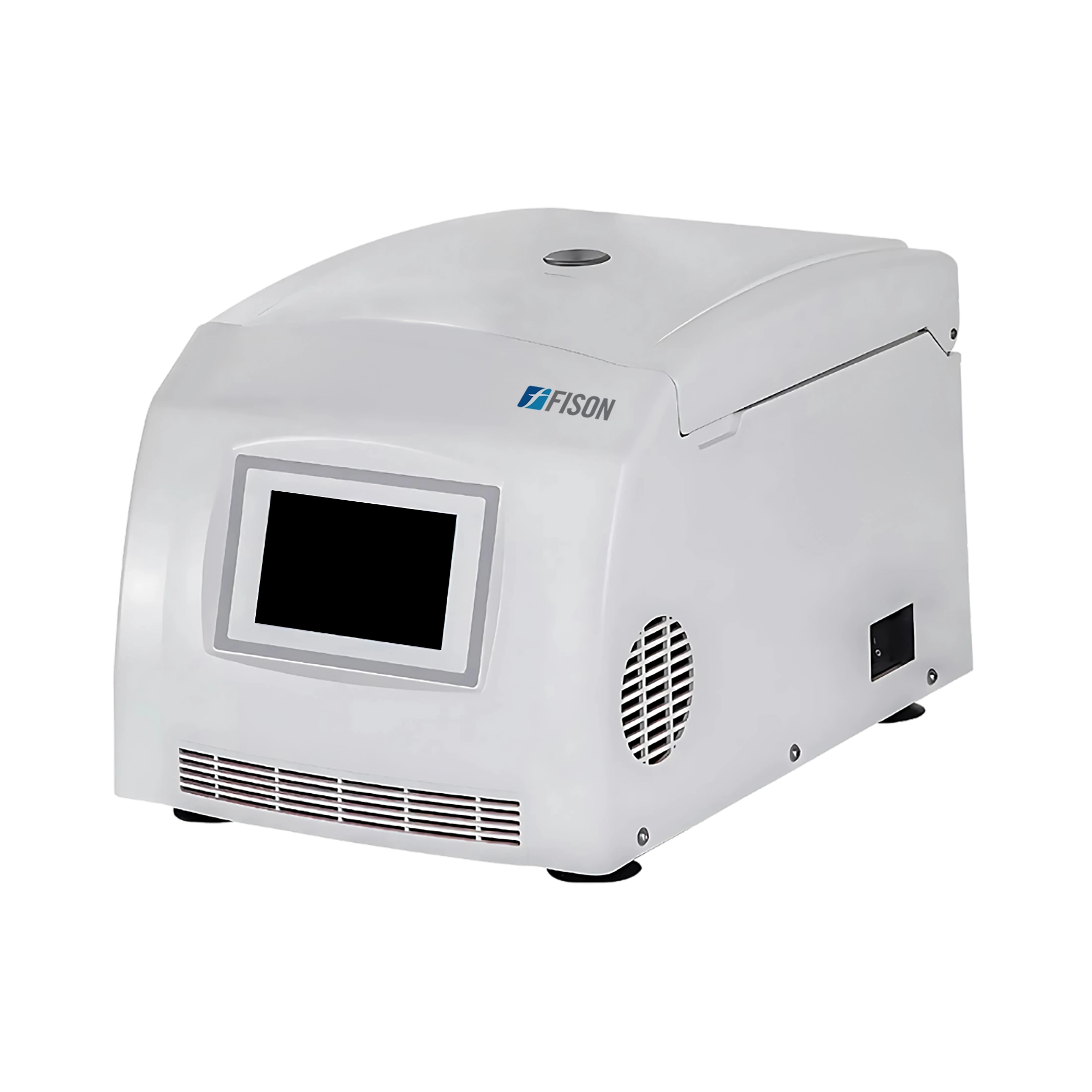

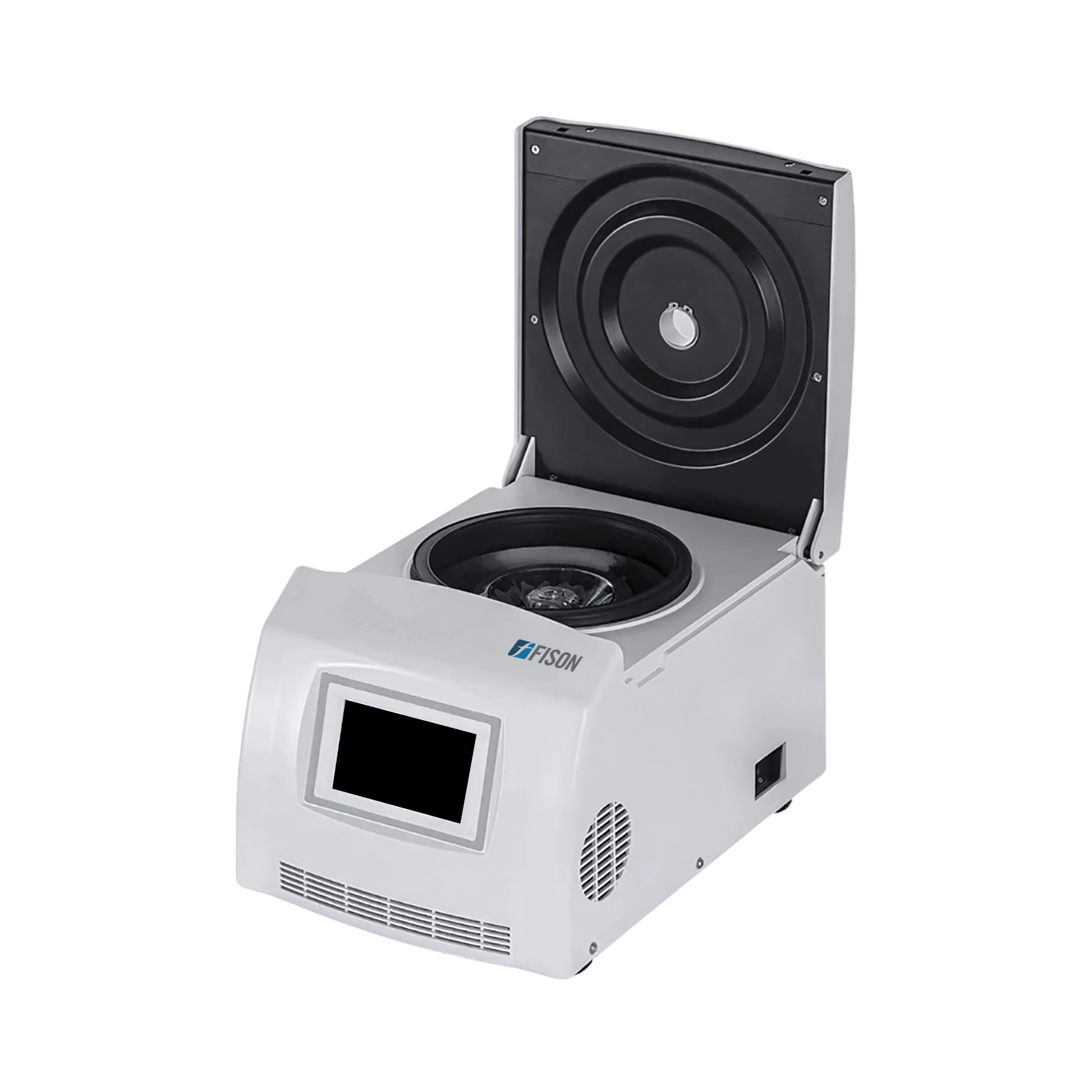

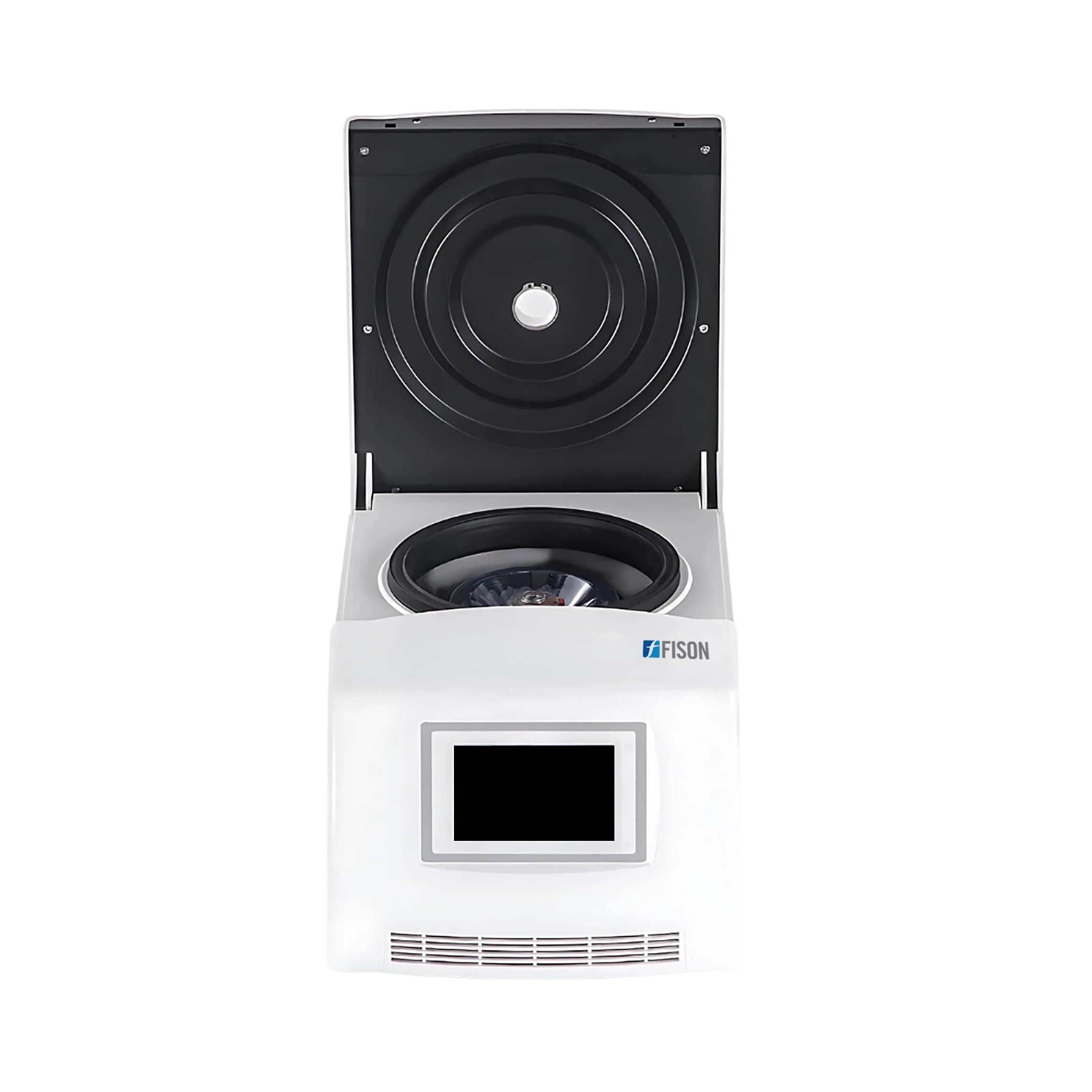

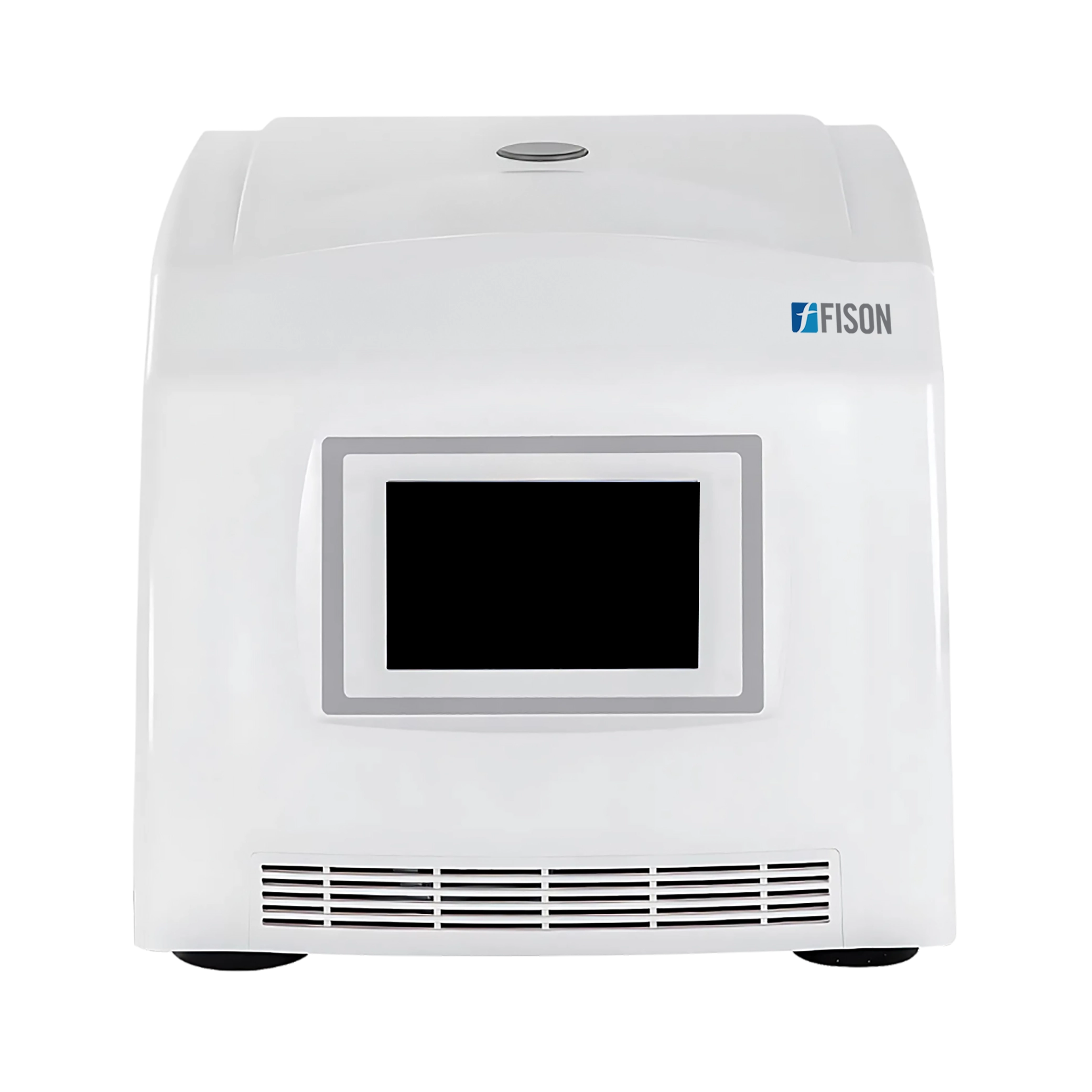

High Speed Refrigerated Microcentrifuge FM-HMC-A100
High speed Refrigerated Microcentrifuge FM-HMC-A100 offers maximum speed of 14000 rpm and RCF of 18845×g with temperature range of -10 to +40 °C. It has a temperature sensor inside the chamber to enable optimal cooling performance. Refrigeration automatically activates upon power on and persists during the operation. It features automatic rotor identification and imbalance detection. Its eco-friendly CFC-free refrigerant makes it a reliable choice for precision centrifugation.
Specifications
| Max speed | 14000 rpm |
| Max RCF | 18845×g |
| Max capacity | 12×5 ml |
| Temperature range | -10 to +40 °C |
| Temperature accuracy | ± 1 °C |
| Speed accuracy | ± 10 rpm |
| Time setting | 1s to 99h59m59s |
| Noise | ≤56dB (A) |
| Power consumption | 400W |
| Power supply | 220V, 50Hz |
| Dimension | 510 300 280 mm |
| Package dimension | 600 485 360 mm |
| Net weight | 29 kg |
| Gross weight | 33 kg |
Features
- LCD touchscreen
- Automatic rotor identification by RFID
- Compact and light weight
- Electronic Self-priming lid lock
- Microprocessor control
- Multi-stage centrifugation
Applications
- Our microcentrifuge can be used for DNA/RNA extraction, PCR tube spinning, blood sample processing and other applications in laboratories requiring temperature-controlled centrifugation.
Optional Rotor Selection
Rotor
Capacity
Maximum speed
Maximum RCF
Tube size
Fixed angle rotor 01 24×1.5/2.2 ml
14000 rpm
18845×g
Φ11×42 mm
Fixed angle rotor 02 4×0.2 ml PCR strip 14000 rpm
17091×g
Fixed angle rotor 03 12×5 ml
14000 rpm
15930×g
Φ14×54 mm
Frequently Asked Question
1: Can this unit recognize rotors automatically?
Yes, it features automatic rotor identification through RFID, which helps prevent mismatches and ensures safe operation by matching the program settings with the correct rotor.
2: What kind of interface and control features does it offer?
The microcentrifuge is equipped with a responsive LCD touchscreen, making it easy to set and adjust parameters. It also supports multi-stage centrifugation programs, allowing users to create complex workflows without manual intervention between steps.
3: How safe is this unit during operation?
High speed Refrigerated Microcentrifuge FM-HMC-A100 includes built-in safety mechanisms such as an electronic self-priming lid lock and imbalance detection. These features help protect both the equipment and the operator during high-speed runs.
4: Is this model suitable for labs with limited space?
Absolutely. Its compact design and relatively low weight make it an excellent choice for smaller labs or those with limited bench space, without sacrificing performance or versatility.
5: What kind of refrigerants are used in this centrifuge?
It uses a CFC-free refrigerant, which supports eco-friendly operation and complies with laboratory sustainability standards.
