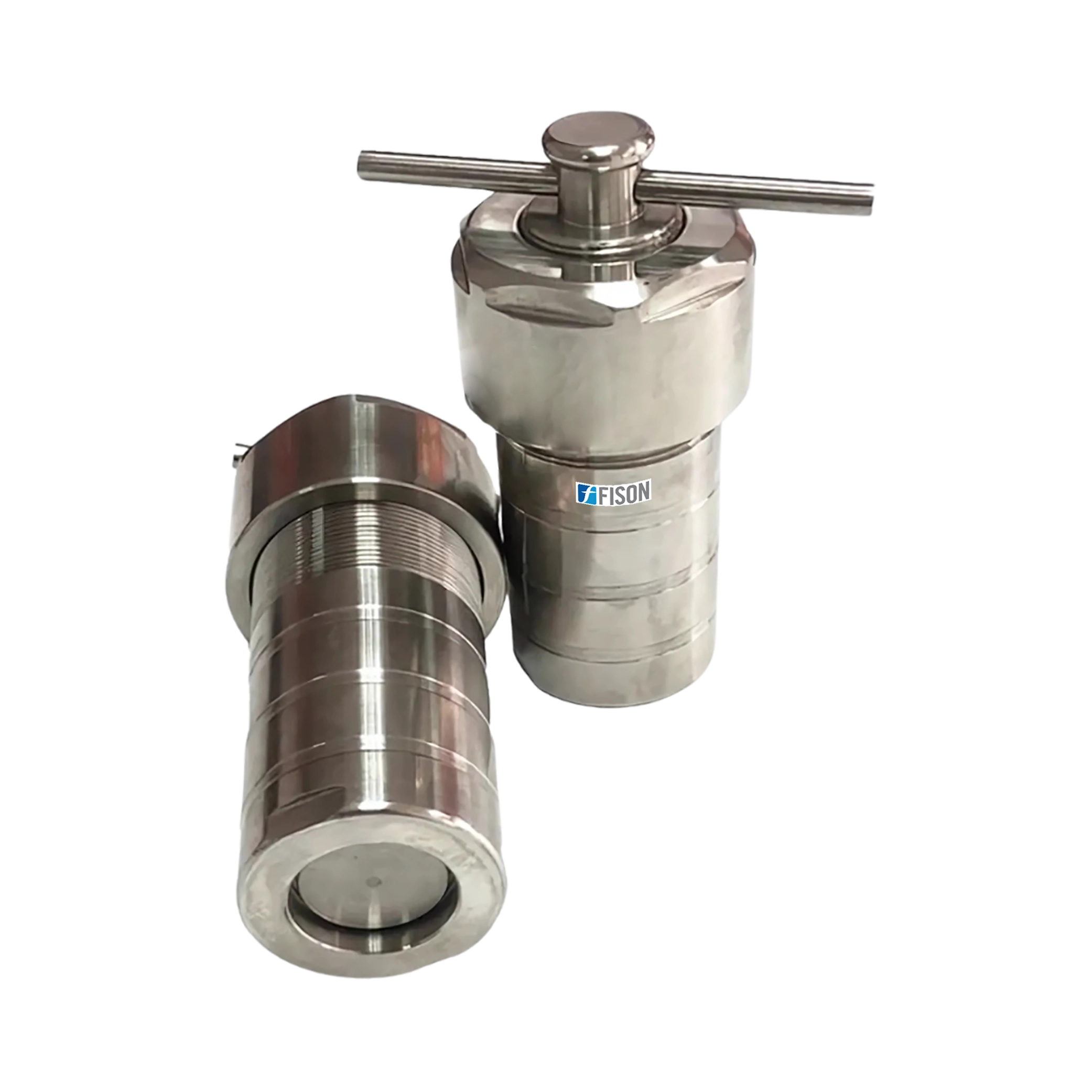

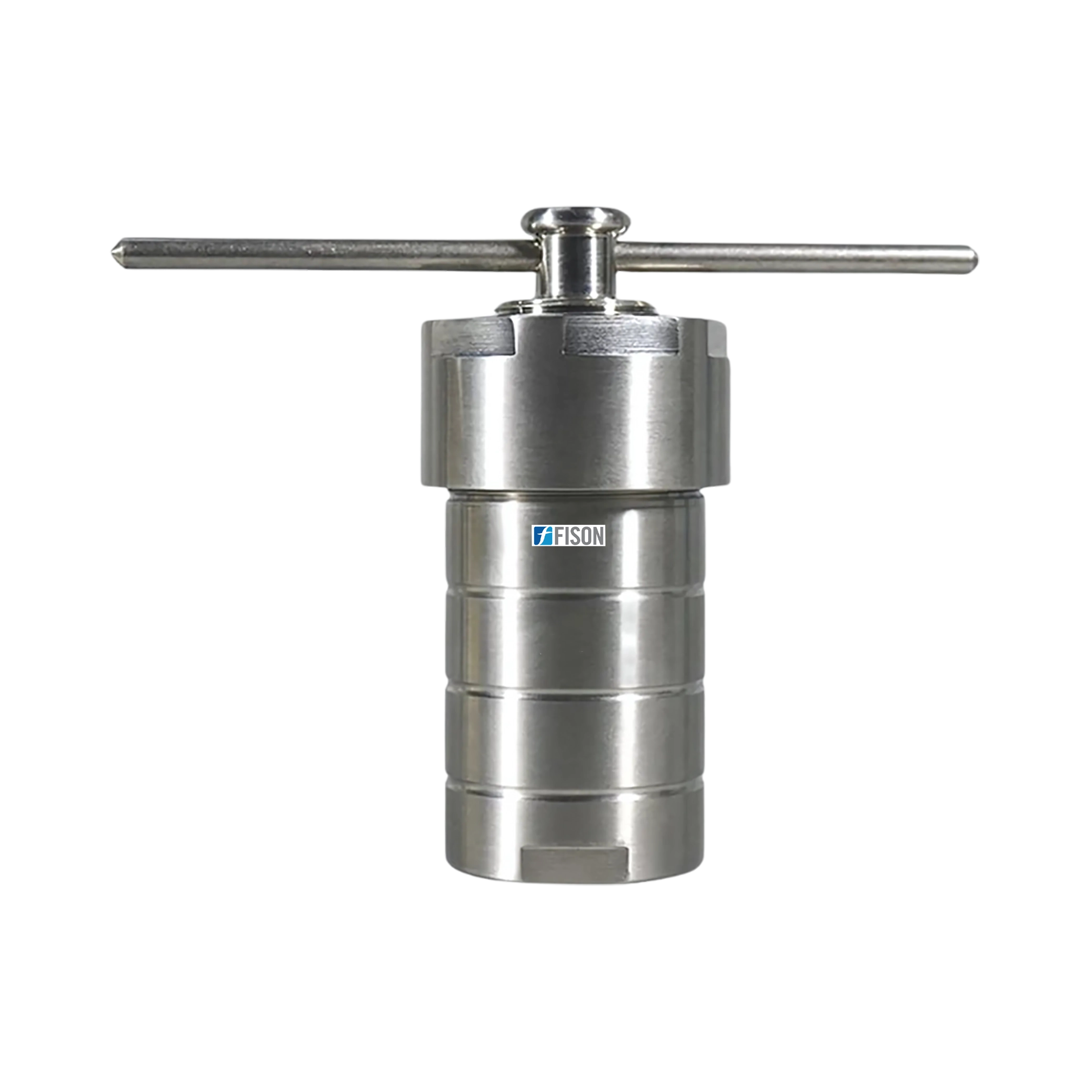

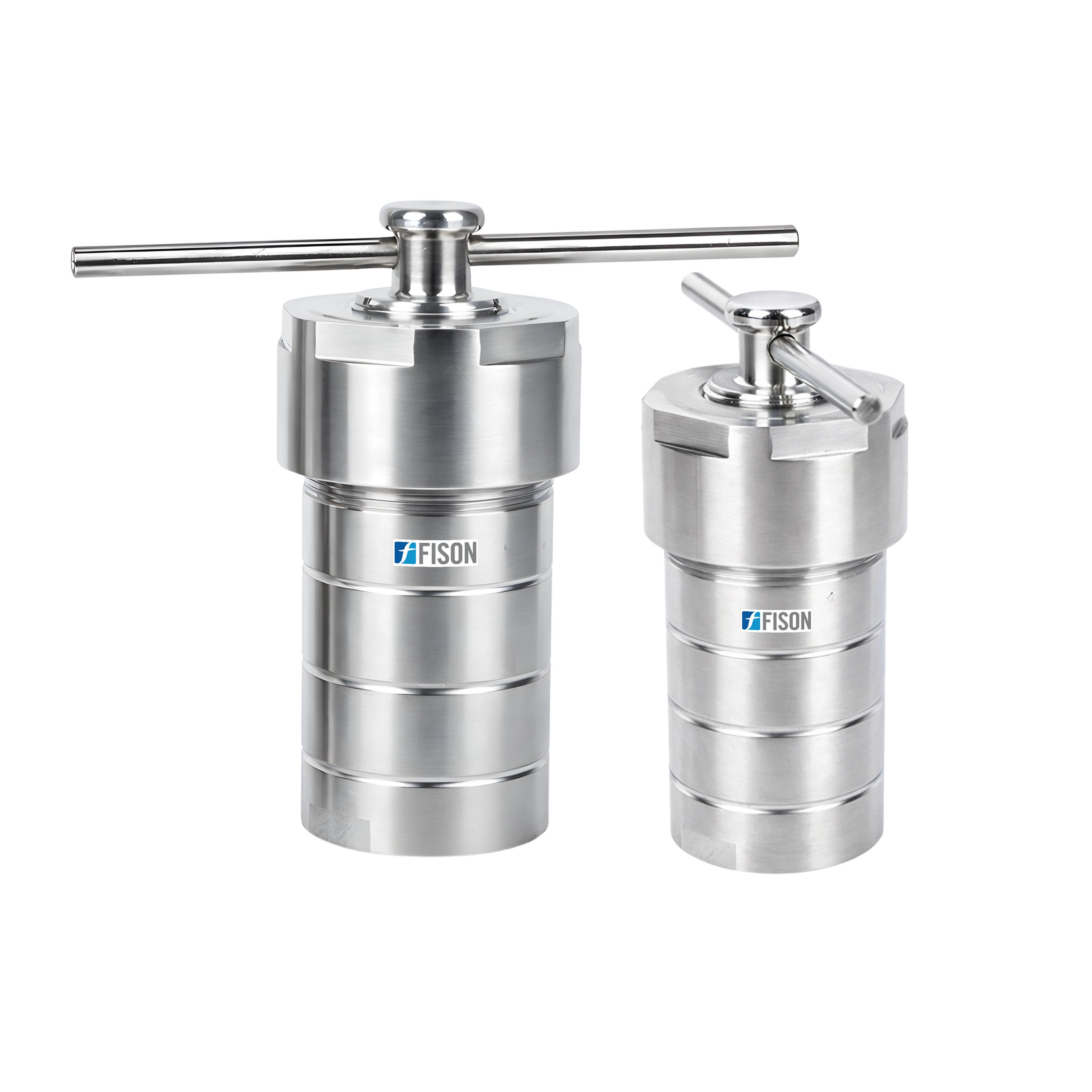

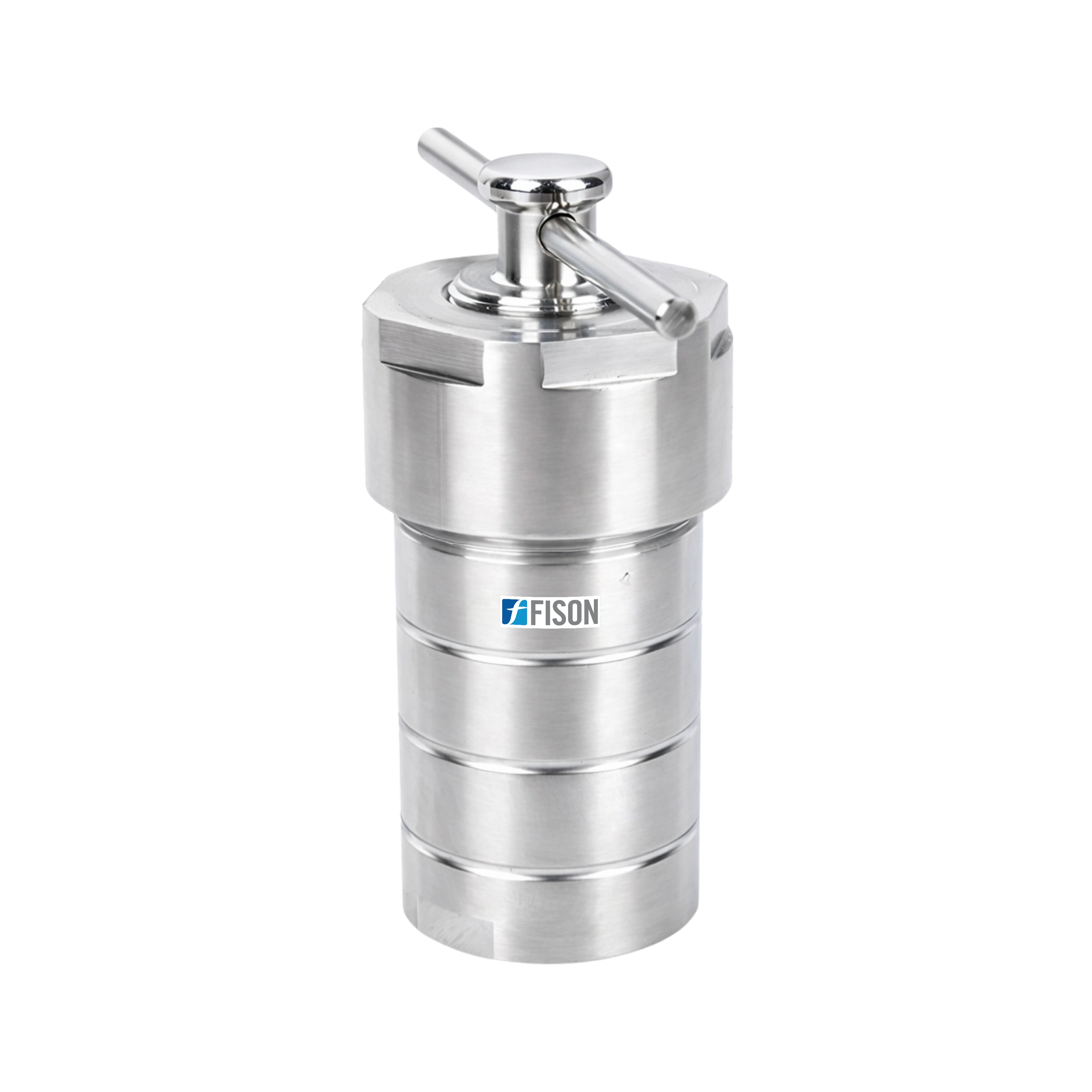

Fison Hydrothermal Autoclave FM-HTA-A100 features a 200 mL capacity, a working temperature up to 230°C, and a pressure up to 3 MPa for high-temperature and high-pressure reactions. This hydrothermal reactor is equipped with a stainless-steel chamber and PTFE lining to support chemical compatibility. Its 5°C/min heating and cooling rate, intelligent temperature control, and round tongue-and-groove sealing help maintain controlled reaction conditions.
$470.00
| Capacity | 200 mL |
| Heating / Cooling Rate | 5 °C/min |
| Working Temperature | ≤ 230 °C |
| Pressure | ≤ 3 MPa |
| Chamber Construction | Stainless Steel |
| Lining Material | PTFE |
| Product Dimensions | Ø107 × 202 mm |
| Packaging Dimensions | 250 × 250 × 300 mm |
| Net Weight | 6 kg |
| Gross Weight | 7 kg |
Hydrothermal Autoclave is used for hydrothermal reactions, chemical reactions, biology, biochemistry, soil sciences, and catalysis studies.
Lining material (PFA, PPL)
Fison hydrothermal autoclave range designed for high-pressure chemical processing in laboratory applications. Built with corrosion-resistant stainless steel and inert liners, the series functions as a hydrothermal reactor for controlled reactions with thermo-pressure monitoring and safety features including rupture disc protection. Operating parameters include heating and cooling rate up to 5°C/min, working temperature up to 230°C and pressure up to 3 MPa. Capacity options range from 100 ml to 500 ml for varied experimental requirements.
