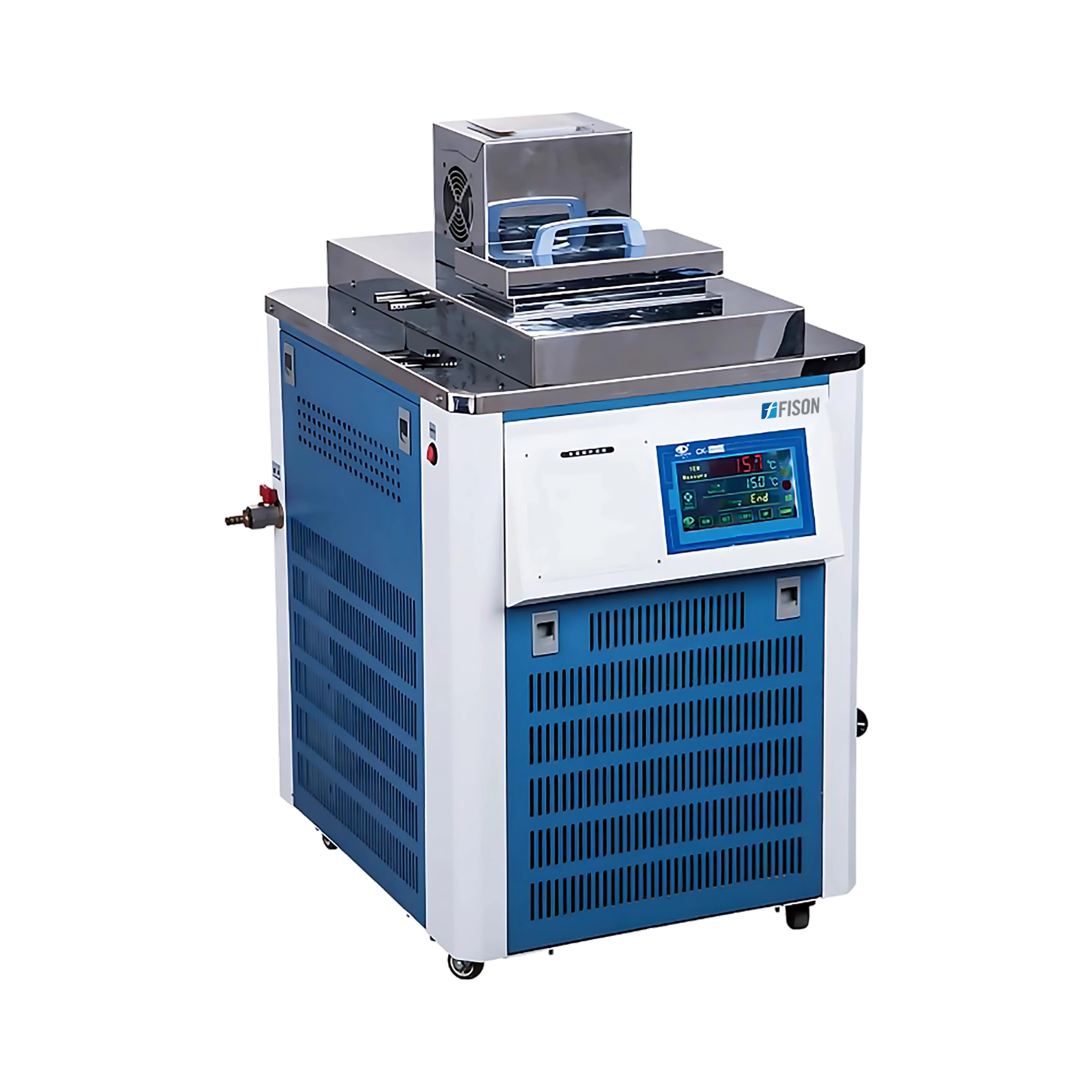

Low Temperature Circulating Bath FM-LCB-A100

Low Temperature Circulating Bath FM-LCB-A100

Low Temperature Circulating Bath FM-LCB-A100 is a rapid low temperature cooling circulating bath with a microcomputer PID automatic controller. Designed with 5 L capacity, -40°C to 200°C temperature range and double window (red and green) LED display. It has internal and external cycles with external cycles discharging thermostatic liquid outside the bath to lower or raise the temperature of the external vessel. Pump for external circulation with maximum flow rate of 20 L/min and drainage system. Used in petrochemical industry, national defence, metallurgy, chemical industry, physics, biology engineering, chemistry, pharmaceutical, life science, electronic instrument, quality inspection and measurement, plant laboratory, colleges, research and development institutes.

  •  Enclosed air cooling compressor for refrigeration
  •  Microcomputer controlled temperature
  •  Dual window (red and green) LED display
  •  Equipped with multipurpose protection like overheating and over current
  •  Top surface of water bath made up of stainless steel
  •  Shell made of steel plate with plastic sprayed surface
  •  4 caster wheel for easy movement of device
  •  Alarming device for under low temperature and over high temperature

Capacity 5 L
Temperature range -40°C to 200°C
Temperature stability ± 0.1°C
Head of delivery pump 10 m
Pump flow 20 L/min
Temperature control tier 32 controls points
Timer range 0 to 9999 min
Display Dual window LED display
Display resolution 0.1°C
Drainage Yes
Cooling power 1322 W
Heating power 800 W
Power supply 220 V, 50 Hz
Net weight 36 kg
Gross weight 59 kg
Packaging Dimension 480 ×520 × 600 mm

Used in petrochemical industry, national defence, metallurgy, chemical industry, physics, biology engineering, chemistry, pharmaceutical, life science, electronic instrument, quality inspection and measurement, plant laboratory, colleges, research and development institutes.
