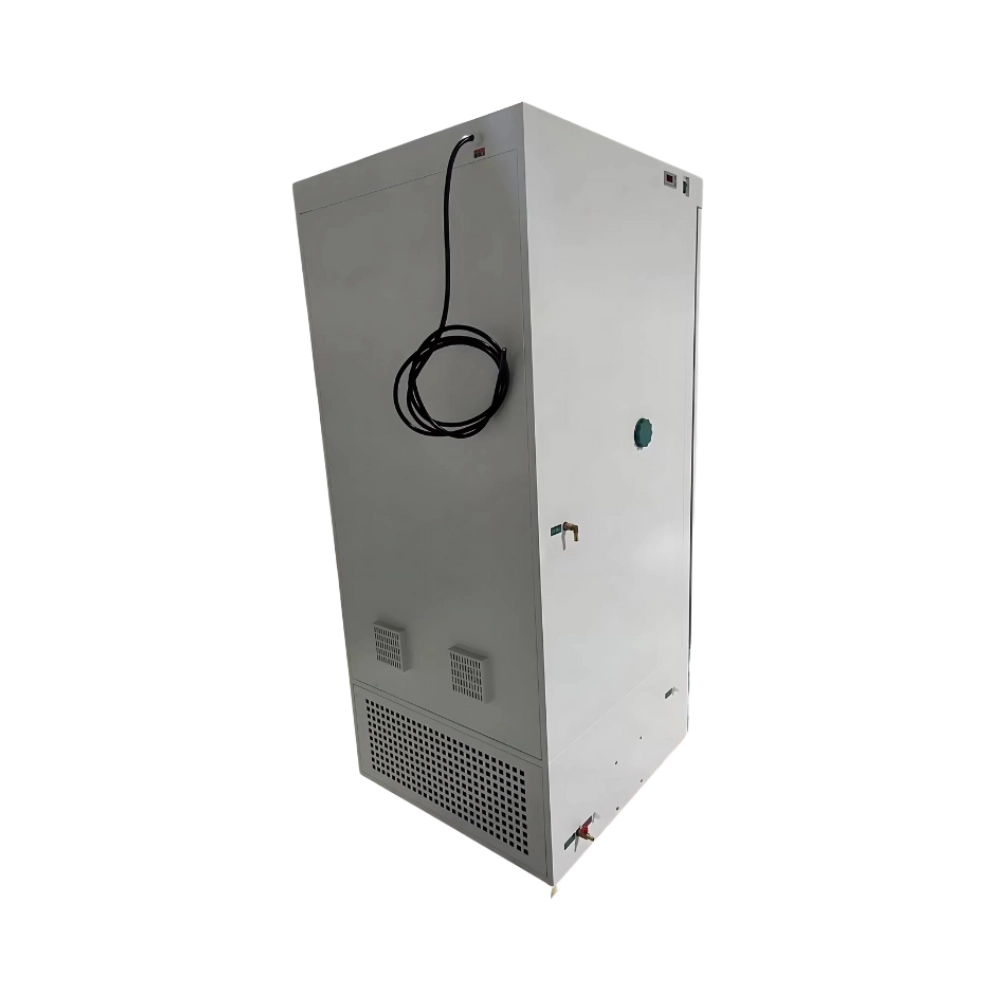

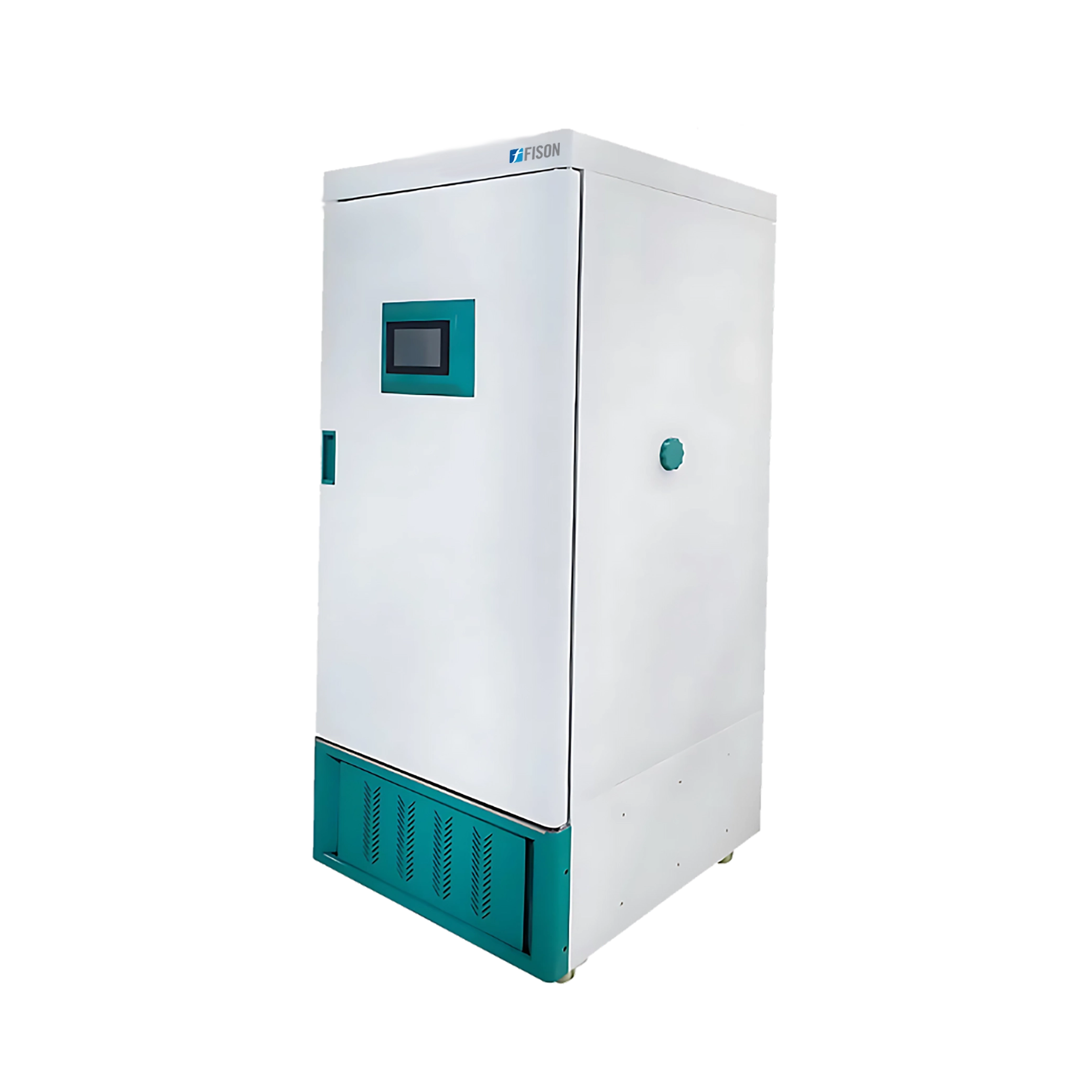

Plant Growth Chamber FM-PGC-A100

Plant Growth Chamber FM-PGC-A100

Plant Growth Chamber FM-PGC-A100 is an internal humidification system, providing uniform humidity range from 40% to 95% RH, suitable for efficient plant growth. Designed with true color touchscreen display for viewing and controlling the technical parameters to ensure flexible operation. Integrated with superior quality compressor and sensor to enhance accuracy of the chamber.

  •  Cycle mode: Forced convection, rear micropore, and supply air in front of plate
  •  Internal humidification system for uniform distribution of humidity
  •  Full spectrum adjustable multistage for the convenience of the user
  •  LUX and RH controller enhances efficiency of the equipment
  •  Full spectrum LED top light source design ensures great illumination
  •  Low thermal radiation from light source enhances reliability
  •  Removable light partition and adjustable light space for ease of handling
  •  Automatic water intake with water shortage alarm for smooth operation of device
  •  Backflow valve and expansion valve controls evaporator temperature with great precision
  •  Low maintenance tool due to extended service life of compressor
  •  7-inch true color touchscreen display for visualization and managing technical parameters

Chamber Volume 250 L
Shelves 4 pcs
Temperature Resolution Ratio 0.1 ℃
Temperature Range Without Lighting: 0 to 65℃ With lighting:10 to 65℃
Temperature Uniformity ± 1.0 ℃
Humidity Range 40% to 95% RH
Humidity Motion ± 5% RH
Lighting Intensity Full Spectrum 0 to 30000 LX, many degrees adjustable
Light barrier Standard 4-layer full spectrum LED lamp board
Power Supply AC 220 V, 50/60 Hz
Sensor PT 100
Interior Dimension (W × D × H) 600 × 500 × 840 mm
Exterior Dimension (W × D × H) 794 × 726 × 1600 mm
Packaging dimension 893 × 863 × 1850 mm
Net Weight 225 Kg
Gross weight 255 Kg

Plant Growth Chamber FM-PGC-A100 is widely used for growth of plant cell tissues and seedling across sectors of biotechnology, agriculture, cell biology, academics, research laboratories, etc.


Accessories no. Name Quantity
1 Shelves 4
2 Shelf plates 8

Light barrier


USB interface
Upper computer software
Printer
Wireless SMS alarm
CO2 concentration control
