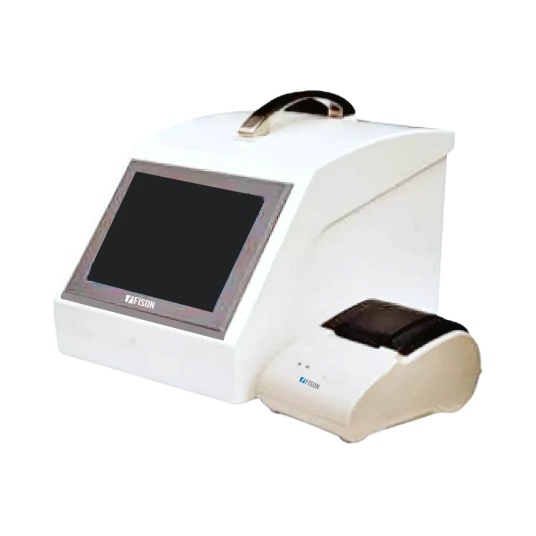

TOC Analyzer FM-TOC-B106
TOC Analyzer FM-TOC-B106 include a wide conductivity detection range of 0.055 to 8.000 µS/cm and a precise measurement range of 0.001 mg/L to 1 mg/L (1 to1000 ppb). It offers both online and offline testing modes, making it versatile for varied applications. It features a no-pump design, high-speed CPU processor, and real-time raw data storage. Our TOC Analyzer simplifies operation by eliminating pressure reducing valves. Ideal for pharmaceutical water monitoring, cleaning validation, and industrial lab analysis.
Specifications
| Type | Online/Offline |
| Measurement Range | 0.001mg/L to 1mg/L (1 to 1000ppb) |
| Conductivity Detection Range | 0.055 µs/cm to 8.000 µs/cm |
| Applied Range | Online/Offline/CleaningValidation |
| Response Time | 5 mins |
| Sample Temperature | 1 to 99℃ |
| Accuracy | ±3% |
| Resolution | 0.001mg/L |
| Measuring Limit | 0.001mg/L |
| Interface | USB Disk |
| Storage | ≥3 years storage |
| Audit trail | Customization |
| Authority Management | Username and password login，to meet FDA 21CFR PART11 requirements |
| Expansion Port | Ethernet Port 232 Serial Port Power Output Port 4 to 20MA signal output |
| Print Function | External Printer |
| Display Screen | Color Touch Screen |
| RSD | Repeatability ≤3% |
| Power | 120W |
| Power Supply | 100 to 260 VAC 50HZ |
| Dimension | 400 × 240 × 270 mm |
| Weight | 8.5KG |
Features
- No pump design
- High-speed processor
- Real-time storage
- Continual analysis mode
- Serial port output
- Custom audit trail
Applications
- TOC Analyzer FM-TOC-B106 is ideal for real-time monitoring and validation of pharmaceutical water systems, including purified and injection water, ensuring compliance with regulatory standards. It is also widely used in cleaning validation, electronic manufacturing, and laboratory analysis where accurate organic carbon detection is essential.
