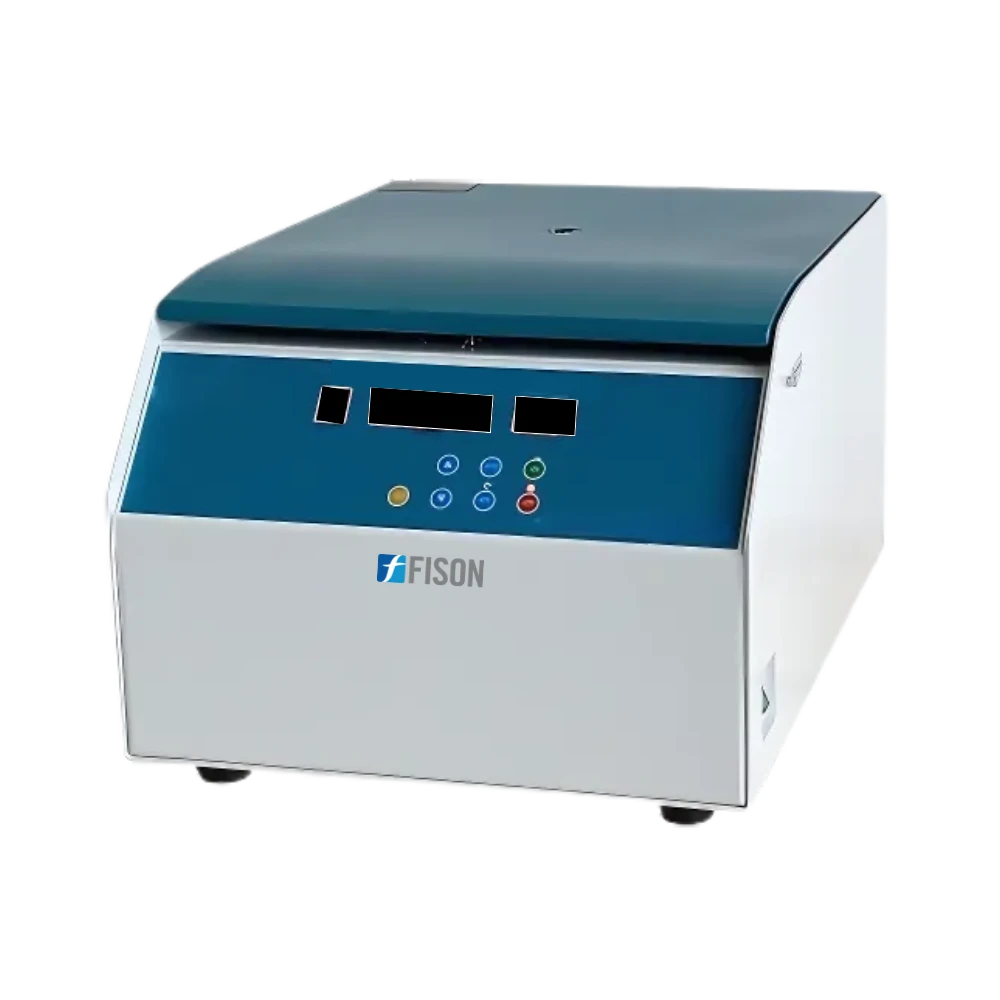

Low Speed Centrifuge FM-LSC-A521
Low Speed Centrifuge FM-LSC-A521 offers a maximum speed of 5000 rpm, delivering reliable performance for various separation tasks. It has a swing rotor that holds 8 tubes of 100 ml each, making it ideal for medium to large-volume sample processing. Our centrifuge features a brushless motor with variable frequency, ensuring smooth, efficient, and maintenance-free operation.
$2,218.00
Specifications
| Maximum Speed | 5000 rpm |
| Rotor Capacity | 100 ml × 8 Swing rotor |
| Maximum RCF | 4540 × g |
| Timer | 0 to 99 min |
| Power Supply | 110V 60Hz / 220V 50Hz |
| Dimension | 450 × 600 × 360 mm |
| Packing Dimension | 550 × 700 × 480 mm |
| Net Weight | 40 kg |
| Gross Weight | 54 kg |
Features
- Direct RPM/RCF conversion
- Automatic fault diagnosis
- Self-locking mechanism
- Overcurrent protection
- Programmable operation
- Speed signal loss protection
- Data auto-storage
Applications
- Low Speed Centrifuge FM-LSC-A521 separates substances and is widely used in clinical laboratories, research institutions, educational institutions, pharmaceutical labs, environmental labs, food and beverage industry.
Rotors Selection
Rotor No.
Rotor Capacity
Max Speed
Max RCF
Swing Rotor 01
250 ml × 4
5000 rpm
4540 ×g
Swing Rotor 02
15 ml × 12
4000 rpm
2950 ×g
Angle Rotor 01
15 ml × 12
5000 rpm
3600 ×g
Angle Rotor 02
50 ml × 8
5000 rpm
3630 ×g
Frequently Asked Question
1: What is the maximum tube capacity supported by the Low Speed Centrifuge FM-LSC-A521?
Low Speed Centrifuge FM-LSC-A521 comes with a swing rotor that holds 8 tubes of 100 ml each, making it suitable for medium to large-volume sample processing in clinical, research, and industrial laboratories.
2: How does Low Speed Centrifuge FM-LSC-A521 ensure operational safety during centrifugation?
Low Speed Centrifuge FM-LSC-A521 is equipped with multiple safety features, including a self-locking mechanism, overcurrent protection, speed signal loss protection, and automatic fault diagnosis, ensuring safe and stable performance during every run.
3: Can I convert RPM to RCF directly on the Low Speed Centrifuge FM-LSC-A521?
Yes, the FM-LSC-A521 offers direct RPM/RCF conversion, allowing users to conveniently switch between speed and relative centrifugal force settings based on their experimental needs.
4: Does Low Speed Centrifuge FM-LSC-A521 centrifuge support programmable operation for routine workflows?
Absolutely. Low Speed Centrifuge FM-LSC-A521 supports programmable operation, enabling users to set and save custom parameters for repeated use, enhancing efficiency in repetitive separation tasks.
5: What type of motor is used in the Low Speed Centrifuge FM-LSC-A521, and what are its benefits?
It uses a brushless motor with a variable frequency drive, offering smooth, energy-efficient, and maintenance-free operation with reduced noise and extended motor life.
6: Does Low Speed Centrifuge FM-LSC-A521 have a data storage feature for traceability?
Yes, Low Speed Centrifuge FM-LSC-A521 includes a data auto-storage function that records operational parameters and history, aiding in traceability and quality control in laboratory environments.
