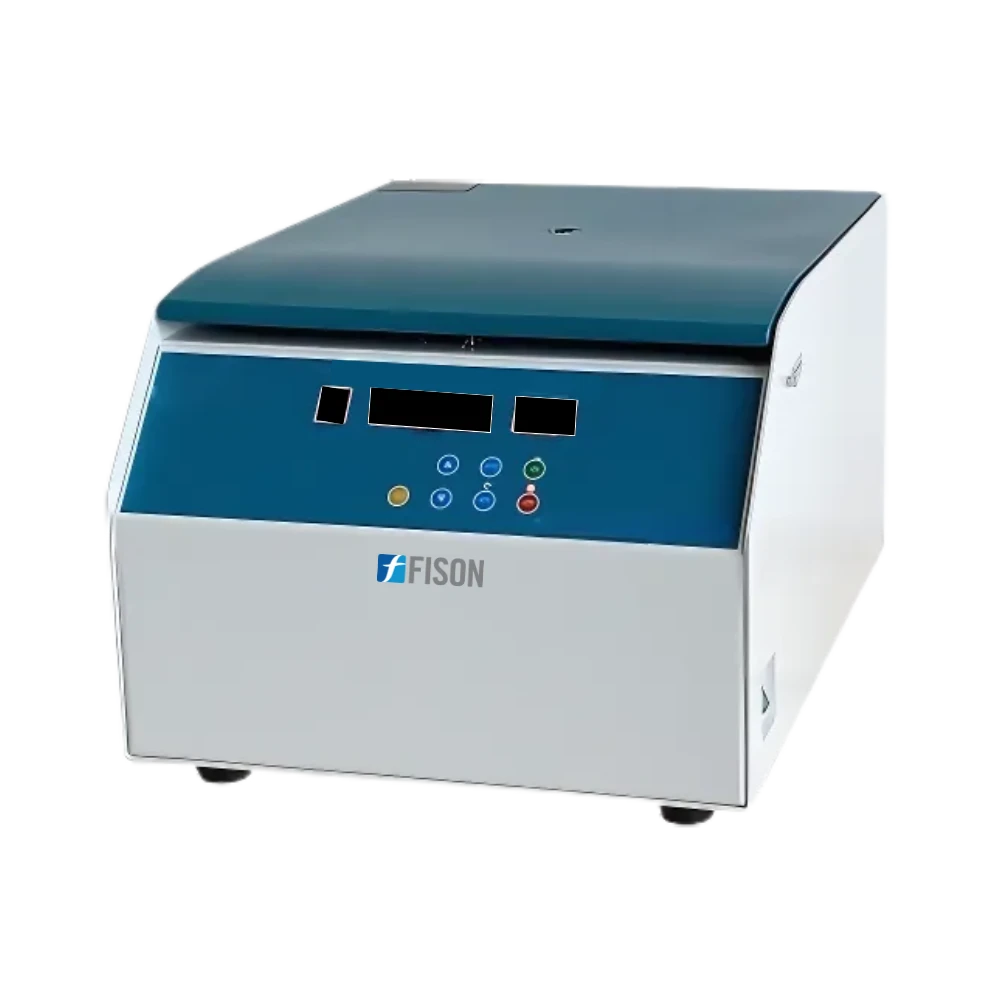

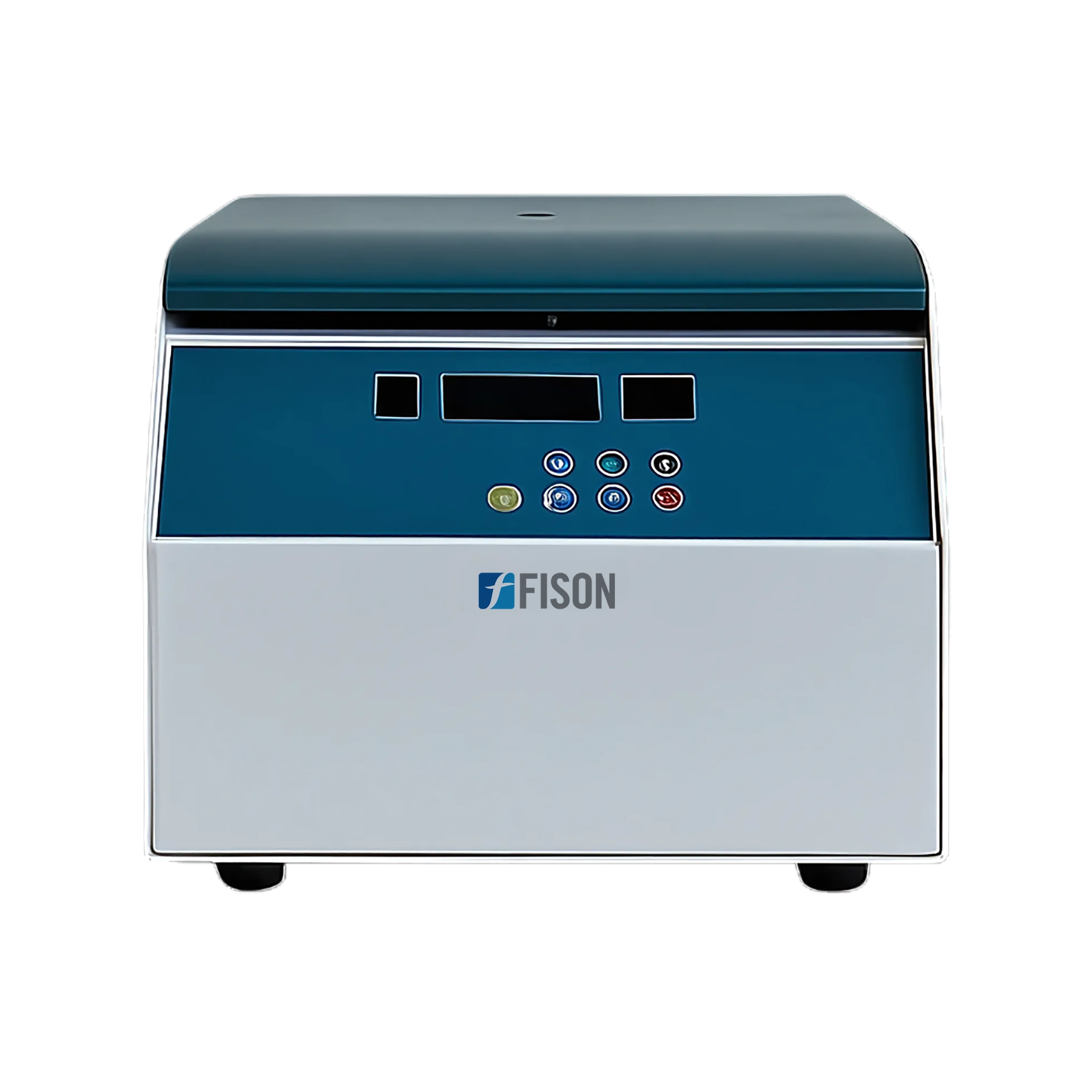

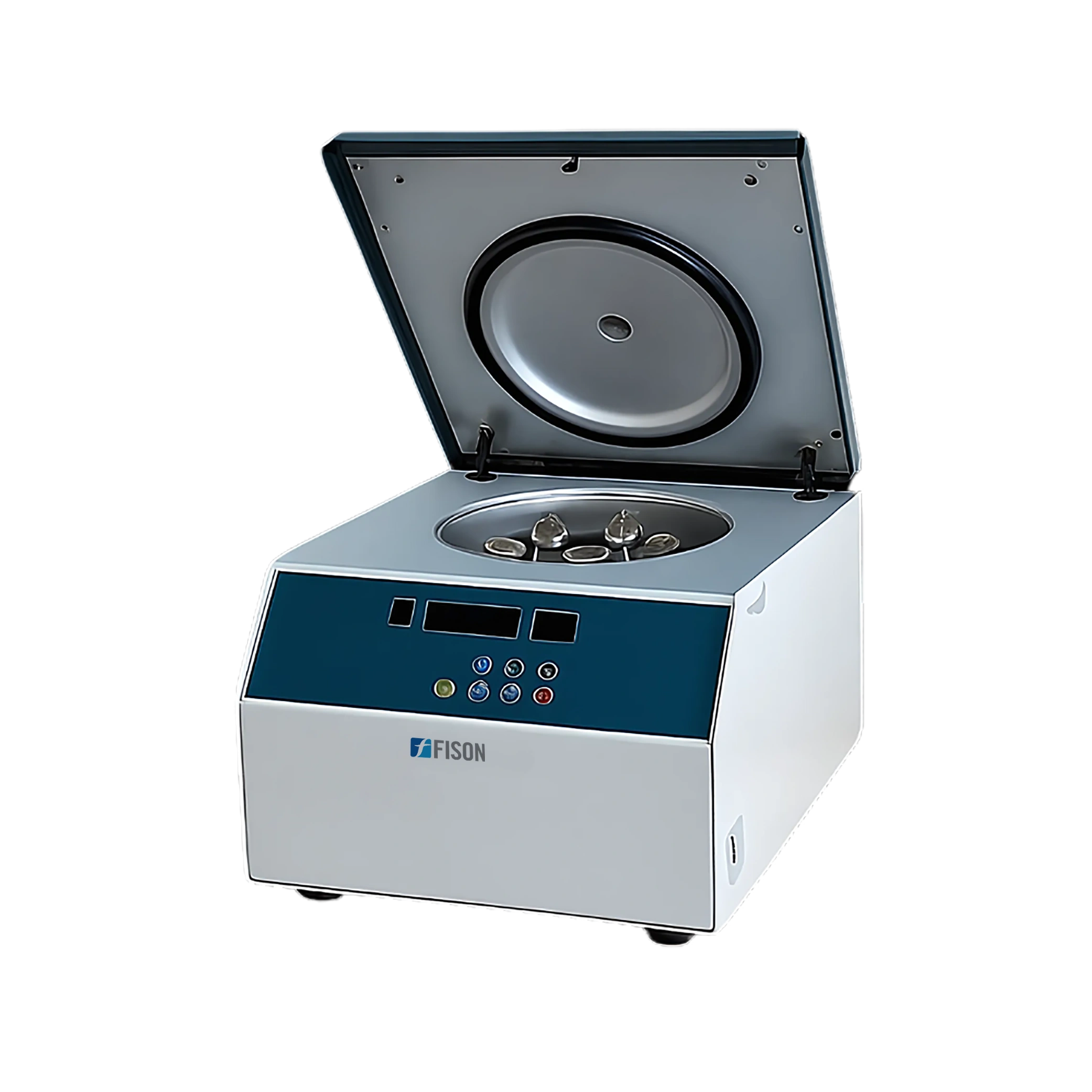

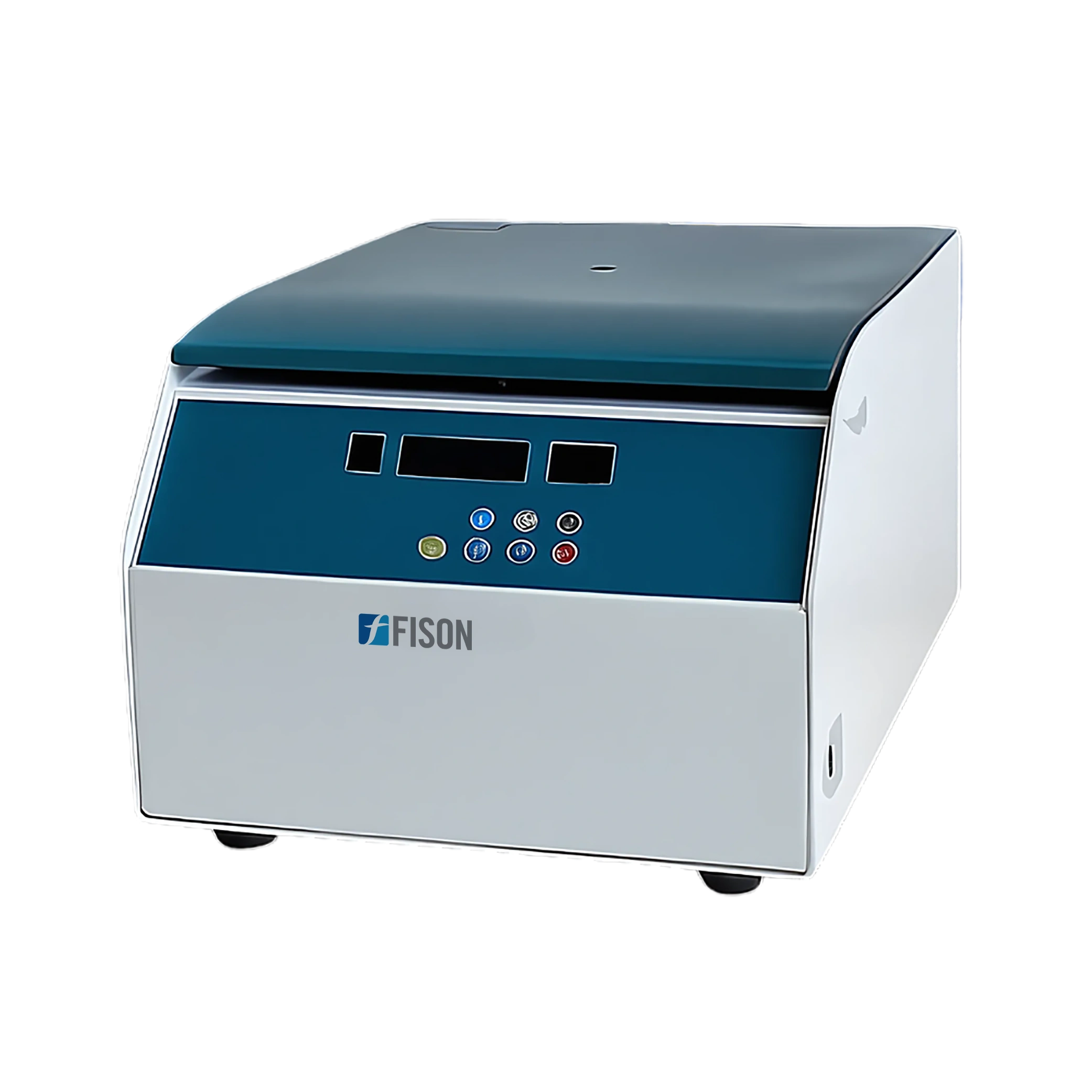

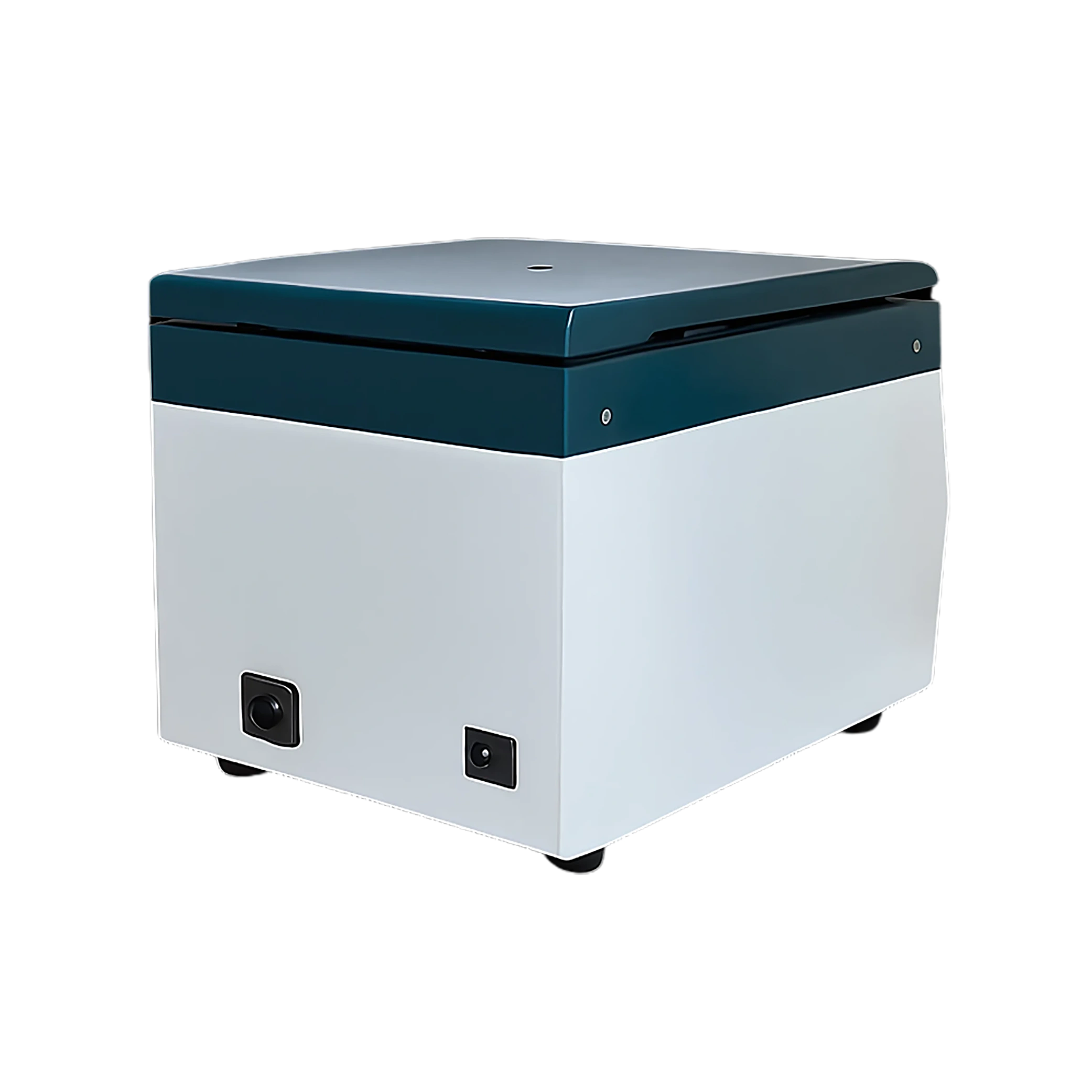

Low Speed Centrifuge FM-LSC-A525
Low Speed Centrifuge FM-LSC-A525 offers a maximum speed of 6000 rpm with stepless speed adjustment for precise control over separation processes. It has a swing rotor that accommodates 4 tubes of 500 ml each, making it ideal for large-volume sample processing. It is equipped with a brushless motor drive and automatic RCF calculation, ensuring efficient performance with minimal maintenance. Our centrifuge features intelligent microcomputer control for precise and user-friendly operation.
$2,816.00
Specifications
| Maximum Speed | 6000 rpm, stepless speed adjustment |
| Rotor Capacity | 500 ml × 4 swing rotor |
| Maximum RCF | 5800 × g |
| Timer | 0 to 99 min |
| Power Supply | 110V 60Hz / 220V 50Hz |
| Dimension | 480 × 600 × 360 mm |
| Packing Dimension | 580 × 700 × 480 mm |
| Net Weight | 45 kg |
| Gross Weight | 60 kg |
Features
- 10-stage speed ramp (ascending/descending)
- RPM/RCF switchable
- Automatic fault diagnosis
- Programmable data storage
- Imbalance protection
- Door cover self-locking
- Over-current protection
Applications
- Low Speed Centrifuge FM-LSC-A525 separates substances and is widely used in clinical laboratories, research institutions, educational institutions, pharmaceutical labs, environmental labs, food and beverage industry.
Rotors Selection
Rotor No.
Rotor Capacity
Max RPM/RCF
Angle Rotor 01
10 ml × 12
6000rpm, 5800xg
Angle Rotor 02
100 ml × 4
6000rpm, 5800xg Swing Rotor 01
100 ml × 4
5000rpm, 4390xg
Swing Rotor 02
50 ml × 8
4000rpm, 3040xg
Swing Rotor 03
15 ml × 24
4000rpm, 3040xg
Swing Rotor 04
15 ml × 32
4000rpm, 3040xg
Swing Rotor 05
10 ml × 48
4000rpm, 3500xg
Swing Rotor 06
5ml / 7ml × 64
4000rpm, 3500xg
Swing Rotor 07
5 ml / 7 ml × 72
4000rpm, 3500xg
Swing Rotor 08
5 ml / 7 ml × 96
4000rpm, 3500xg
Swing Rotor 09
5 ml / 7 ml × 148
4000rpm, 3500xg
Swing Rotor 10
250 ml × 4
4000rpm, 3600xg
Swing Rotor 11
96 microwell plate × 2
4000rpm, 3040xg
Frequently Asked Question
1: What is the maximum capacity and speed of Low Speed Centrifuge FM-LSC-A525?
Low Speed Centrifuge FM-LSC-A525 can accommodate 4 tubes of 500 ml each in its swing rotor, making it ideal for large-volume sample processing. It offers a maximum speed of 6000 rpm with stepless speed adjustment for precise separation control.
2: Does the Low Speed Centrifuge FM-LSC-A525 centrifuge allow switching between RPM and RCF?
Yes, the Low Speed Centrifuge FM-LSC-A525 supports RPM/RCF switchable operation. This feature allows users to choose their preferred mode of speed representation, enhancing flexibility in different laboratory workflows.
3: What safety features are integrated into the Low Speed Centrifuge FM-LSC-A525?
Low Speed Centrifuge FM-LSC-A525 is equipped with multiple safety features, including imbalance protection, door cover self-locking, and over-current protection. These mechanisms ensure safe operation and protect both users and the device from damage during use.
4: Is the Low Speed Centrifuge FM-LSC-A525 suitable for programmable operations?
Yes, it features programmable data storage, allowing users to save frequently used parameters for faster setup. Combined with its intelligent microcomputer control, the FM-LSC-A525 offers enhanced convenience for repetitive or routine tests.
5: What type of motor is used in the Low Speed Centrifuge FM-LSC-A525, and does it require regular maintenance?
Low Speed Centrifuge FM-LSC-A525 uses a brushless motor drive, which ensures efficient performance, low noise, and minimal maintenance requirements, making it reliable for long-term lab use.
6: How does the 10-stage speed ramp feature benefit users of the FM-LSC-A525 centrifuge?
The 10-stage speed ramp (both ascending and descending) in the FM-LSC-A525 allows for smooth acceleration and deceleration, preventing sample disturbance or spills and ensuring optimal separation quality during sensitive procedures.
