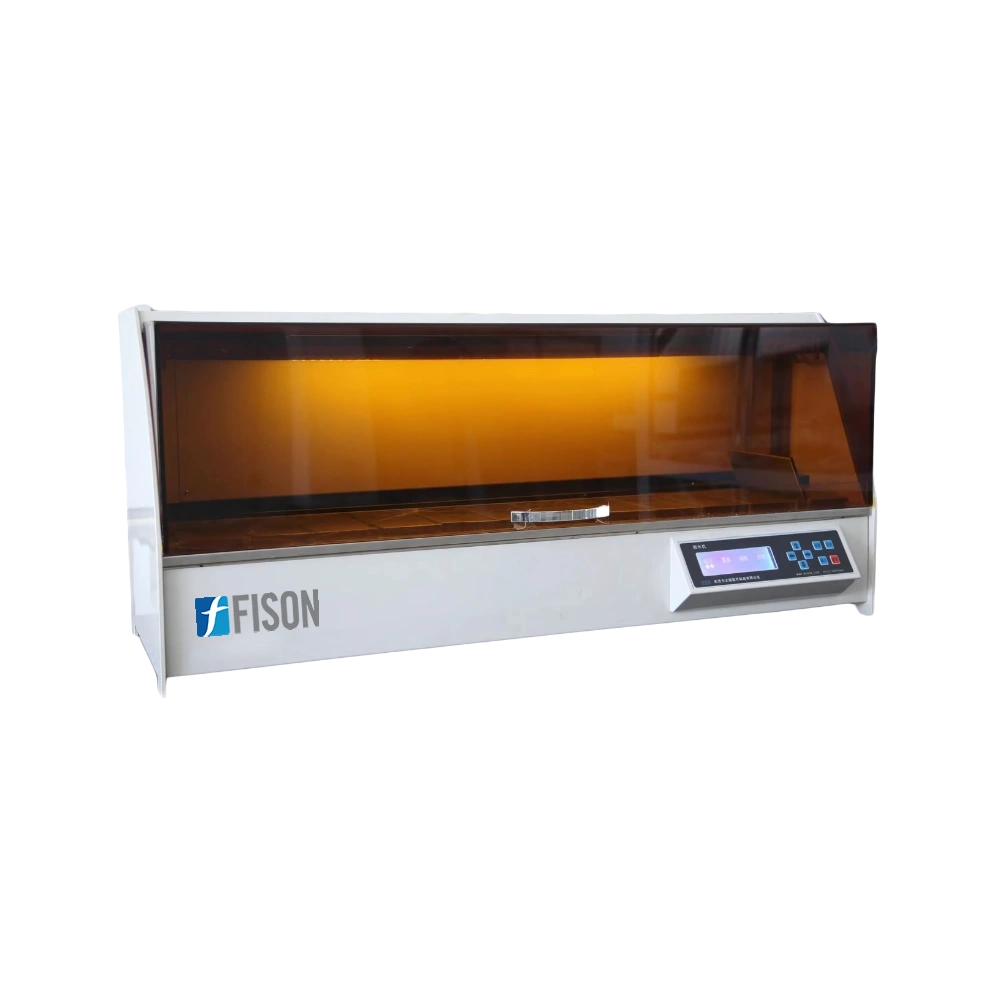

Automatic Tissue Processor FM-ATP-A101
Automatic Tissue Processor FM-ATP-A101 is engineered with a high precision 75-cassette capacity. It has 12 tanks, including 3 wax tanks with an energy-efficient design. Our system provides a vacuum-assisted tissue protection mechanism, which protects the tissue during a power failure. Its independent temperature system ensures consistency and safety in tissue processing.
$4,356.00
Specifications
| Capacity | 1500mL per tank |
| Basket Capacity | 75 cassettes |
| Tanks | 12 |
| Wax Cylinders | 3 |
| Temperature | Up to 99°C |
| Cylinder Dwell Time | 45 to 100 sec |
| Stirring Speed | 0 to 5 times/min Adjustable |
| Tissue Protection Cylinder Position | 7th tank |
| Program Capacity | 16 editable programs |
| Processing Time | 0 to 99 hours Adjustable |
| Power Backup | 4 to 6 hours |
| Dimensions (L×W×H) | 1130×400×500 mm |
| Package Dimensions | 1260×570×640 mm |
| Net weight | 67kg |
| Gross Weight | 100kg |
Features
- Double-Control Heating
- Three Temperature Control Systems
- Environment-Friendly Design
- Gear and Rack Transmission
- Anti-corrosive APS Sprayed Body
- 16 Editable Programs
- Tissue Protection Cylinder
Applications
- Our Automatic Tissue Processor FM-ATP-A101 is ideal for medium-scale histology laboratories, diagnostic centers, research institutions, and veterinary pathology labs. Its compact design and triple temperature control system ensure precise paraffin embedding and reliable tissue processing.
Accessories
Accessory Quantity Tanks 12pcs Tissue Basket 1pc Exhaust Pipe 1pc Tissue Cassette 20 pcs Fuse(5A) 2 pcs Power Line 1 line
Frequently Asked Question
1: What makes Automatic Tissue Processor FM-ATP-A101 different from basic tissue processors?
Automatic Tissue Processor FM-ATP-A101 offers advanced features like triple temperature control, vacuum tissue protection, and 16 programmable cycles. These ensure high processing precision, enhanced tissue safety, and reliable results, especially for complex or sensitive specimens.
2: How does Automatic Tissue Processor FM-ATP-A101 tissue protection system work during power failures?
In Automatic Tissue Processor FM-ATP-A101 the event of a power outage, the built-in backup system provides 4–6 hours of uninterrupted operation. If the wax bath has not reached its set temperature, the tissue is automatically redirected to the protection cylinder to avoid drying or thermal damage.
3: In Automatic Tissue Processor FM-ATP-A101, can I process different types of tissues using the same device?
Yes. Automatic Tissue Processor FM-ATP-A101 supports 16 fully customizable programs. You can set unique timings, agitation rates, and temperatures based on the tissue type (e.g., muscle, gland, and biopsy), ensuring optimal infiltration and dehydration.
4: In Automatic Tissue Processor FM-ATP-A101, how user-friendly is the control system?
Automatic Tissue Processor FM-ATP-A101 features an English menu interface with intuitive man-machine interaction. It provides real-time prompts, status updates, and error messages to assist both novice and experienced users in navigating operations with ease.
5: In Automatic Tissue Processor FM-ATP-A101, what is the role of the triple temperature control system?
In Automatic Tissue Processor FM-ATP-A101, the three-tier system ensures stable wax temperatures and includes two backup controllers in case one fails. This redundancy improves system safety and keeps the embedding process consistent, even in fluctuating lab environments.
6: In Automatic Tissue Processor FM-ATP-A101, how does the stirring mechanism help in tissue processing?
In Automatic Tissue Processor FM-ATP-A101, the adjustable stirring system (0–5 times/minute) enhances reagent penetration by keeping solutions evenly distributed around tissue samples. This prevents uneven processing and improves specimen integrity.
7: What are the maintenance requirements for Automatic Tissue Processor FM-ATP-A101?
In Automatic Tissue Processor FM-ATP-A101, routine maintenance includes cleaning the tanks, checking reagent and wax levels, and inspecting the mechanical transmission (gear and rack). The anti-corrosive body and durable construction reduce the frequency of repairs and extend device life.
