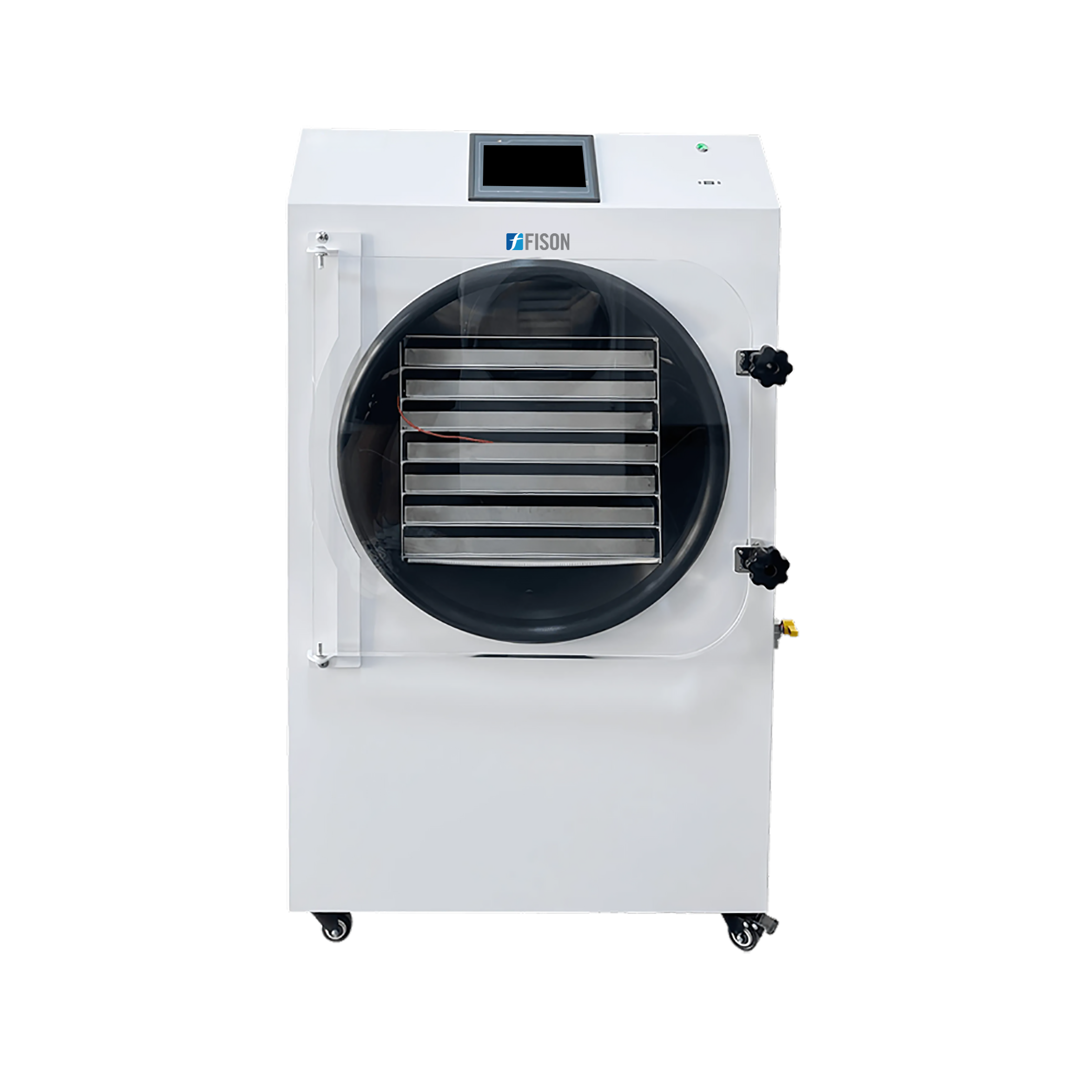

Vacuum Freeze Dryer FM-VFD-A102
Vacuum Freeze Dryer FM-VFD-A102 contains 1.5M² drying area with 7 trays, handling 15 to 20kg per batch. Features a -60°C ultra-low cold trap for industrial-grade drying. Equipped with a 7-inch touchscreen and USB data export for process tracking. It possesses a thick, high-transparency acrylic observation door that ensures durability while allowing clear visibility of the drying process. It is designed for heavy-duty freeze-drying applications.
Specifications
| Freeze dried area | 1.5M² |
| Handling capacity | 15 to 20 kg/batch |
| Cold trap temperature | -60°C |
| Maximum ice capacity/water catch | 20kg/24H |
| Shelves spacing | 40mm |
| Number of trays | 7 Pcs |
| Tray size | 270×780 mm |
| Ultimate vacuum | ≤ 2Pa |
| Vacuum pump type | 2XZ-4 |
| Pumping speed | 4L/S |
| Noise | ≤ 60db |
| Power | 3000W |
| Power supply | 220V/50Hz |
| Dimension (L×B×H) | 650×1080×1130 mm |
| Package dimension (L×B×H) | 730×1150×1510 mm |
| Net weight | 197kg |
| Gross weight | 245kg |
Features
- High-capacity ice capture
- Industrial compressors
- Quiet operation
- Constructed with food-grade materials
Applications
- Vacuum Freeze Dryer FM-VFD-A102 is ideal for commercial kitchens, research labs, and pharmaceutical industries requiring large-scale drying.
