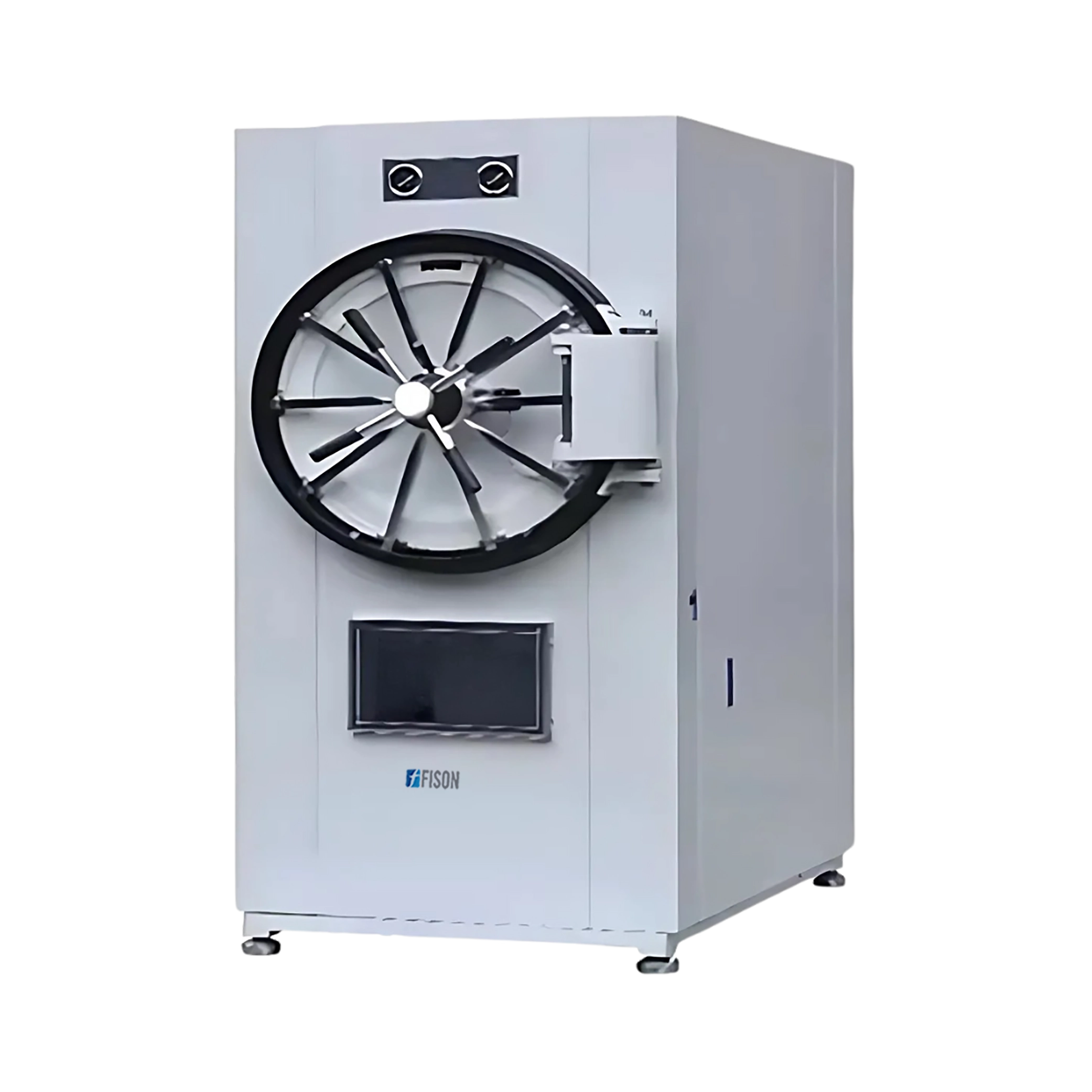

Horizontal Autoclave FM-HA-A201
Horizontal Autoclave FM-HA-A201 is a microprocessor controlled automatic single door autoclave with a capacity of 200 L. The complete leak proof chamber provides efficient sterilization process resulting in destruction of all living organisms due to high pressure of 0.22 MPa and 134°C temperature. Unit is constructed with corrosion resistant stainless steel and equipped with many advanced safety features that enable users to achieve fast, reliable and reproducible sterilization.
Specifications
| Chamber capacity | 200 L |
| Inner tank dimension | 515×1000 mm |
| Design | Single door rectangular autoclave |
| Working pressure | 0.22 MPa |
| Working temperature | 134℃ |
| Adjustment of temperature | 40 to 134℃ |
| Chamber construction | 304 grade stainless steel |
| Chamber tray | 1 perforated stainless steel tray |
| Sterilization period | 0 to 99 min |
| Time of drying | 0 to 99 min |
| Control Precision: Temperature | ≤ ±2℃ |
| Maximum power consumption | 9 kW |
| Power supply | 380V/50Hz |
| Dimension | 1400×750×1700 mm |
| Packaging dimension | 1560×910×1880 mm |
| Net weight | 350 kg |
| Gross weight | 436 kg |
Features
- Microprocessor based control with LED display
- Ergonomic rectangular cylindrical design with 304 grade stainless steel construction
- Single door with radial locking arrangement
- Equipped with 1 standard perforated tray for sample loading
- Automatic door opening mechanism when inner pressure drops to 0.027 MPa
- Sterilization cycle is controlled by single point multi-port valve fitted at front top
- Moisture trap fitted in chamber discharge line to absorb condensate automatically
- Fitted with pressure gauge, safety valve and steam release valve
- Equipped with pressure control safety valve which automatically unlocks when pressure rises over 0.24 MPa
- Fitted with Dial thermometer to indicate the inner chamber temperature
Applications
- It is widely used in Research Centers, Major Universities, Pharma, Biotech, Medical research, and Hospitals. These autoclave are intensively used as medical hospital waste sterilizers due to its assured saturated steam deactivating viruses, bacteria, microorganisms under regulated temperature and pressure.
