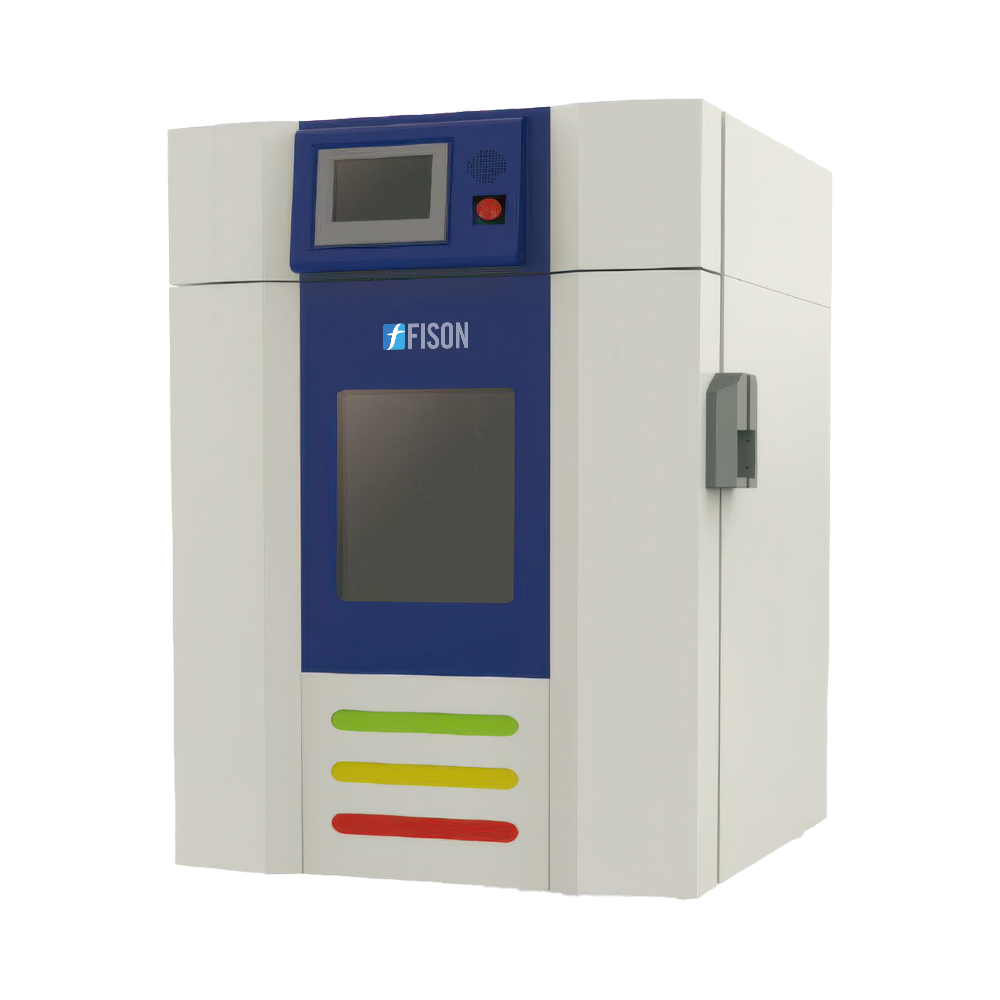

Liquid to Liquid Thermal Shock Chamber FM-LTC-A101
Liquid to Liquid Thermal Shock Chamber FM-LTC-A101 supports a wide temperature range of -65°C to +150°C for extreme thermal shock testing. It offers a compact 4.5-liter test space, ideal for testing smaller components with precision. Its integrated malfunction recording software ensures real-time fault logging and diagnostics for enhanced reliability and maintenance tracking. Our chamber features a user-friendly color touch screen for intuitive operation and precise control of testing parameters.
Specifications
| Test Space Volume | 4.5 L |
| Test Space Temp. Range | -65 to +150 ℃ |
| Liquid Medium | Fluorocarbon Oil |
| Hot Bath Temp. Range | +70 to +200 ℃ |
| Cold Bath Temp. Range | -80 to 0 ℃ |
| Temperature Constancy | ±0.3 to ±1.0 ℃ |
| Temperature Homogeneity | ±0.5 to ±2.0 ℃ |
| Specimen Transfer Time | 10 sec (Time of transfer between hot and cold baths) |
| Temperature Recovery Time | Within 5 mins |
| Cooling Method | Water-Cooled |
| Power Supply | AC380V ±10%, 50Hz, 3/N/PE |
| Test Space Dimension (W × D × H) | 150 × 150 × 200 mm |
| Inside Bath Dimension (W × D × H) | 280 × 380 × 420 mm |
| External Dimension (W × D × H) | 1100 × 1400 × 2000 mm |
Features
- Special liquid medium
- Optional video monitoring
- High-performance servo refrigeration control
- Automatic maintenance reminders
- Ethernet/USB interface
- Remote assist service
Applications
- Liquid to Liquid Thermal Shock Chamber FM-LTC-A101 is used to evaluate the durability and reliability of materials or components and is widely used in medical devices, materials research, automotive industry, aerospace and defense, electronics, and semiconductors.
Accessories
Fluorocarbon oil
Specimen basket
