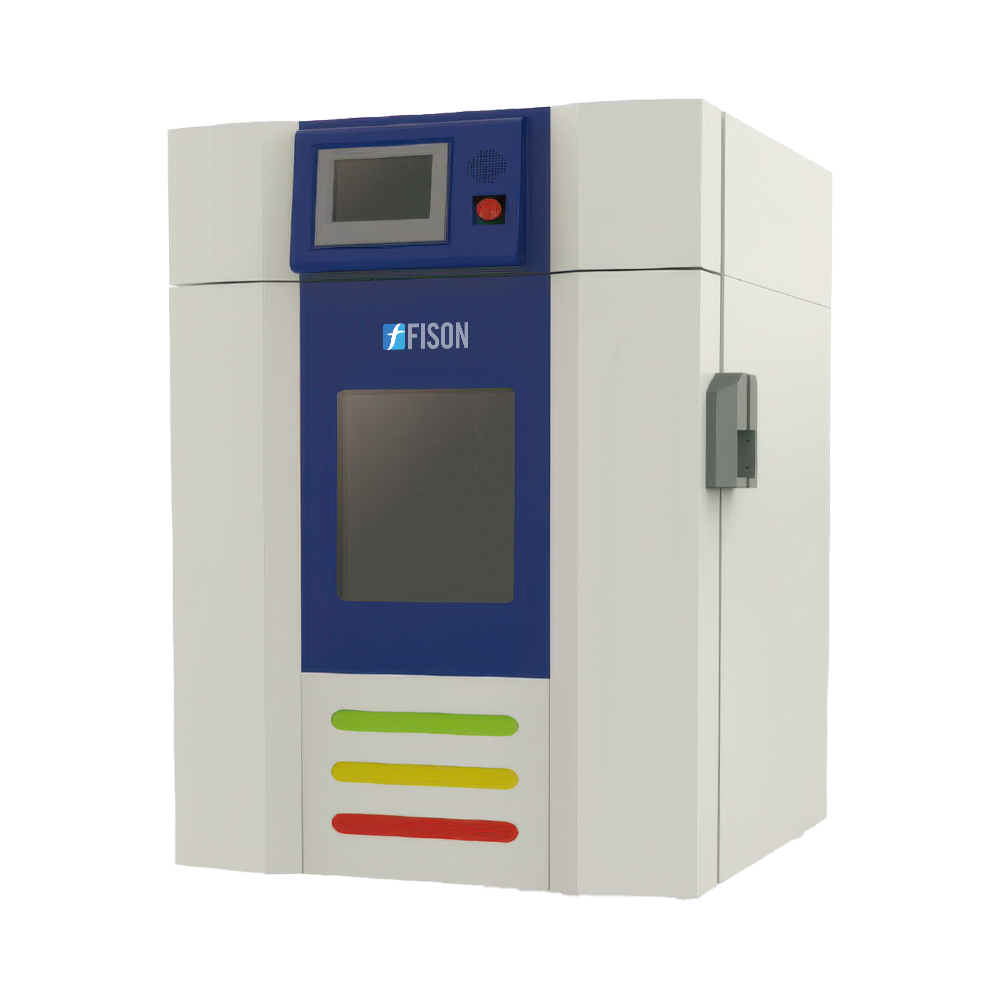

Temperature Altitude Test Chamber FM-TAT-A101
Temperature Altitude Test Chamber FM-TAT-A101 offers a -70°C to +150°C range for precise environmental simulation. It also supports pressure variations from atmospheric pressure to 1.0 KPa, ideal for high-altitude condition testing. It offers versatile connectivity through Ethernet and USB, allowing seamless remote control and data management. Our test chamber uses a 32-bit intelligent control system with real-time monitoring for precise and reliable environmental simulation.
Specifications
| Test Space Volume | 1000 L |
| Temperature Range | -70 to +150 ℃ |
| Pressure Range | Atmospheric Pressure to 1.0 KPa |
| Temperature Constancy | ±0.1 to ±0.8 ℃ (Atmospheric Pressure, No Load) |
| Temperature Homogeneity | ±0.5 to ±2.0 ℃ (Atmospheric Pressure, No Load) |
| Temperature Accuracy | ±2.0 ℃ (Atmospheric Pressure, No Load) |
| Heat-Up Time | Less than 60 min (from +20℃ to +150℃) |
| Cooling Down Time | Less than 90 min (from +20℃ to-60℃) |
| Pressure Accuracy | ±2 KPa (ATM to 40 KPa); ±5% (40 to 4 KPa); ±0.1 (4 to 1 KPa) |
| Pressure Release Time | Less than 45 min (ATM to 1 KPa) |
| Rapid Pressure Release (Optional) | 75.2 KPa to 18.8 KPa in 15 sec |
| Cooling Method | Water-Cooled |
| Power Supply | AC380V ±10%, 50Hz, 3/N/PE |
| Test Space Dimensions (W × D × H) | 1000 × 1000 × 1000 mm |
| External Dimensions (W × D × H) | 1400 × 3250 × 2000 mm |
Features
- 7-inch color touch screen display
- Intelligent power recovery and auto-restart
- Water shortage alert
- Automatic water supply
- Built-in radiation shield
- Malfunction recording software
Applications
- Temperature Altitude Test Chamber FM-TAT-A101 simulates extreme environmental conditions and is widely used in the electronics industry, automotive industry, aerospace, and research and development laboratories.
Accessories
1 Set testing electrode
Electronic temperature and humidity sensors
