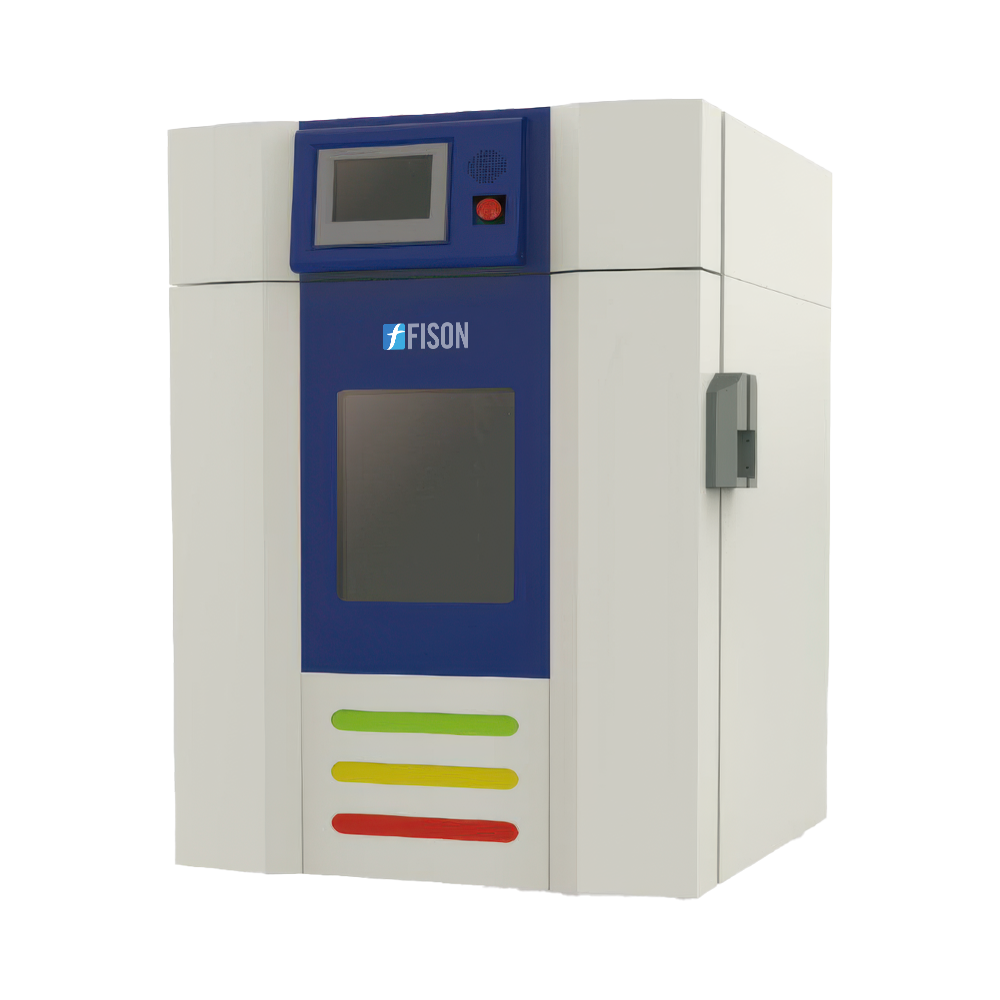

Temperature Altitude Test Chamber FM-TAT-A102
Temperature Altitude Test Chamber FM-TAT-A102 offers a 2000 L test volume, accommodating large or multiple test samples. It supports a wide temperature range from -70°C to +150°C, enabling simulation of extreme environmental conditions. Our test chamber features a 7-inch color touch screen display for intuitive control and real-time parameter monitoring. Its intelligent power recovery and auto-restart function ensure seamless operation continuity after unexpected power interruptions.
Specifications
| Test Space Volume | 2000 L |
| Temperature Range | -70 to +150 ℃ |
| Pressure Range | Atmospheric Pressure to 1.0 KPa |
| Temperature Constancy | ±0.1 to ±0.8 ℃ (Atmospheric Pressure, No Load) |
| Temperature Homogeneity | ±0.5 to ±2.0 ℃ (Atmospheric Pressure, No Load) |
| Temperature Accuracy | ±2.0 ℃ (Atmospheric Pressure, No Load) |
| Heat-Up Time | Less than 60 min (from +20℃ to +150℃) |
| Cooling Down Time | Less than 90 min (from +20℃ to-60℃) |
| Pressure Accuracy | ±2 KPa (ATM to 40 KPa); ±5% (40 to 4 KPa); ±0.1 (4 to 1 KPa) |
| Pressure Release Time | Less than 45 min (ATM to 1 KPa) |
| Optional Rapid Pressure Release | 75.2 KPa to 18.8 KPa in 15 sec |
| Cooling Method | Water-Cooled |
| Power Supply | AC380V ±10%, 50Hz, 3/N/PE |
| Test Space Dimensions (W × D × H) | 1400 × 1200 × 1200 mm |
| External Dimensions (W × D × H) | 1810 × 3710 × 2310 mm |
Features
- Modular, modern design
- 32-bit intelligent control system
- Ethernet and USB connectivity
- Maintenance schedule reminders
- Automatic water supply
- Water shortage alert
- Malfunction recording software
Applications
- Temperature Altitude Test Chamber FM-TAT-A102 simulates extreme environmental conditions and is widely used in the electronics industry, automotive industry, aerospace, and research and development laboratories.
Accessories
1 Set testing electrode
Electronic temperature and humidity sensors
