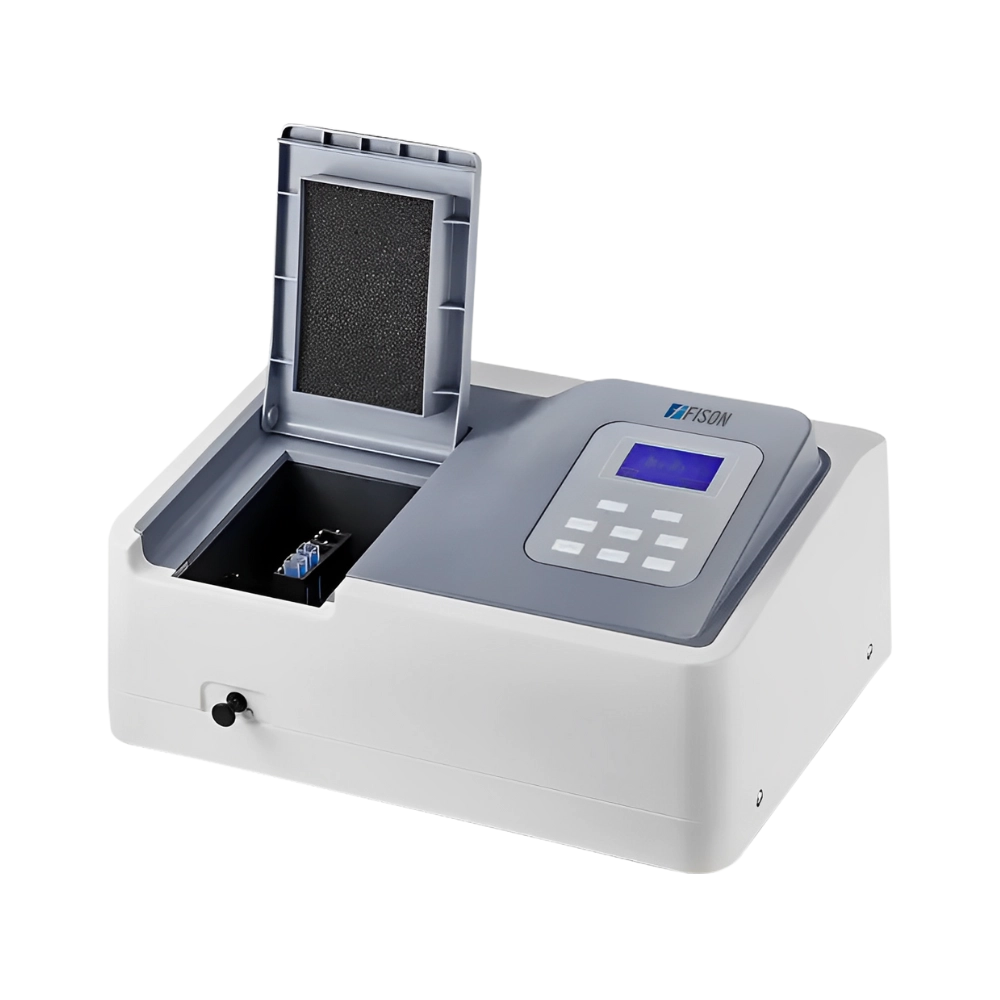

Single Beam UV-Visible Spectrophotometer FM-UVS-A200
Single Beam UV-Visible Spectrophotometer FM-UVS-A200 is a compact unit comes with 4 nm of spectral bandwidth and 200 to 1000 nm of wavelength range. Features tungsten and deuterium lamp as light source with automatic switching and auto-setting of wavelength for fast calibration . Compact design with LCD display and 4 position sample compartments with 10 mm cuvette, it also has USB and printer interface.
Specifications
| Wavelength range | 200 to 1000 nm |
| Spectral bandwidth | 4 nm |
| Optical system | Single beam |
| Wavelength accuracy | ± 2 nm |
| Wavelength repeatability | ≤ 1 nm |
| Photometric range | -0.3 - 3.0 A, 0 to 200%T |
| Photometric accuracy | ±0.003 A @ 0.5 A±0.006 A @ 1.0 A, ±0.5%T @ 100%T |
| Light source | Tungsten lamp and deuterium lamp |
| Stray light | ≤0.2%T @ 360nm |
| Stability | ≤0.002 A/h @ 500 nm ( after preheat 2 hours) |
| Display | LCD |
| Standard cell holder | 4 positions |
| Sample compartment | 10 mm path length cuvette |
| Output | USB port and parallel port (printer) |
| Power requirement | AC 110 / 220 V, 50 / 60 Hz |
| Power | 120 W |
| Dimensions (W × D × H) | 490 × 360 × 210 mm |
| Weight | 14 kg |
Features
- Tungsten and deuterium lamp as light source having automatic switching
- Automatic setting of wavelength range for fast and convenient calibration
- LCD display for convenient setting and observation of running parameters
- 4 position sample compartments with 10 mm cuvette for easy sample measurement
- USB and printer interface for easy data processing and analysis
- Can measure solid as well as liquid samples with great efficiency
- Supports storage up to 200 group data and 200 standard curves
- Data recovery in case of power failure, reliable operation
- Stable and reliable unit with compact design
Applications
- Single Beam UV-Visible Spectrophotometer for detection of impurities, functional groups, and quality analysis and research across biochemistry, biotechnology, microbiology, chemistry, pharmacy, water testing, environmental and food science industries etc.
Accessories
Square glass cuvettes 10mm × 4 pc
Square quartz cuvettes 10 mm × 2 pc
Accessories Optional
Software
4 cell holders: 10 mm, 50 mm, 100 mm
Cylindrical cell holder
10 mm water jacketed holder: 1 cell and 4 cell
Micro cell holder
1 position Test tube holder: Φ8 to 22 mm, δ1.5 to 3 mm
8 position auto cell-changer
2 pc square glass cuvettes: 1 mm, 2 mm, 3 mm, 20 mm, 30 mm, 50 mm, 100 mm
2 pc square glass cuvettes: 1 mm, 2 mm, 3 mm, 20 mm, 30 mm, 50 mm, 100 mm
