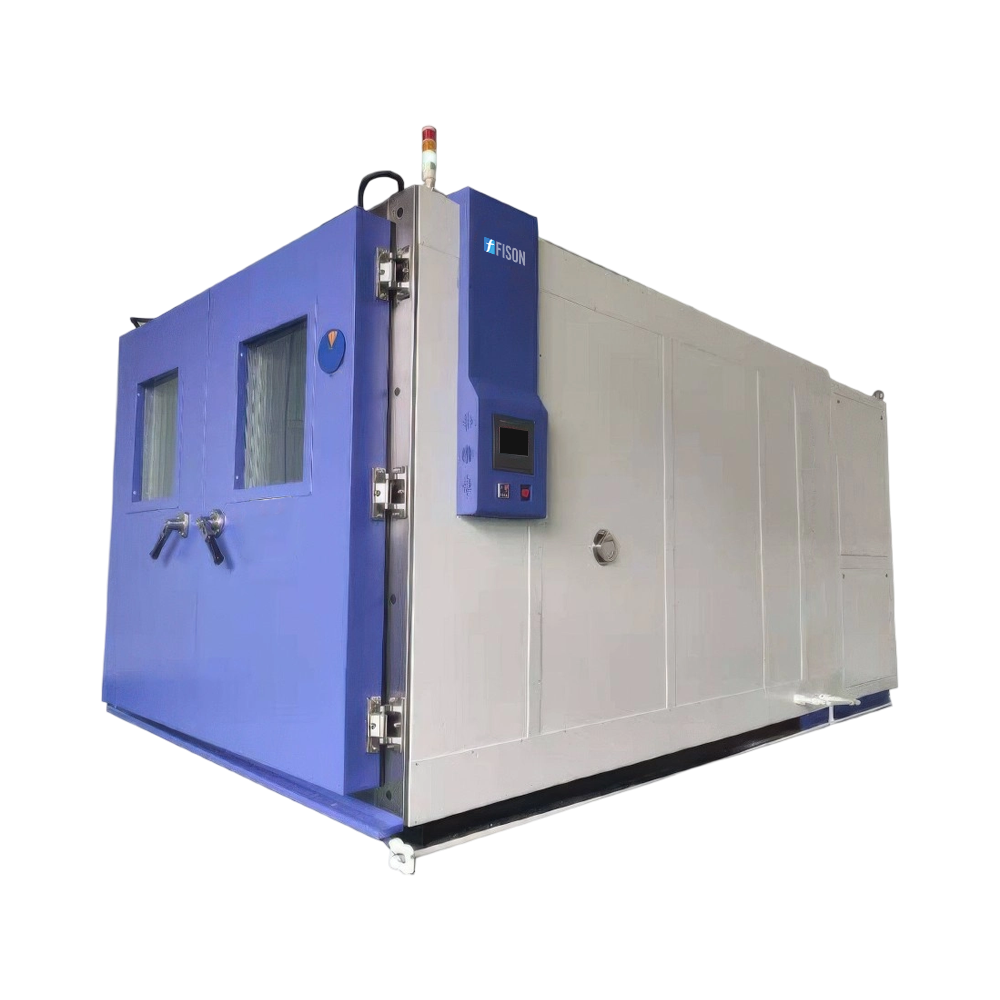

Walk-in Climatic Chamber FM-WIC-A100
Walk-in Climatic Chamber FM-WIC-A100 offers a spacious 8 m³ test volume, ideal for large or multiple specimen testing. It provides a wide temperature range from -40°C to +100°C, enabling reliable simulation of extreme environmental conditions. It's integrated specimen protection sensors actively monitor conditions to prevent overheating and ensure sample safety. Our chamber features a 7-inch full-color touch screen with a 32-bit controller, offering an intuitive interface and precise control over all testing parameters.
$80,374.00
Specifications
| Test Space Volume | 8 m³ |
| Temperature Range | -40 to +100 °C |
| Floor Load | 30,000 N/m³ |
| Humidity Range | 15 to 95 %RH |
| Humidity Fluctuation | ±1.0 to ±5.0%RH |
| Dew Point Temp. Range | +4 to +59 / +4 to +95 °C |
| Heating/Cooling Rate | 1 to 5℃/min |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Temperature Homogeneity | ±0.5 to ±3.0 °C |
| Cooling Method | Air-cooled/Water-cooled |
| Power Supply | AC380V ±10%, 50Hz, 3/N/PE |
| Door Dimensions W × H | 900 × 1900 mm (Single door) |
| Test Space Dimension (W × D × H) | 2000 × 2000 × 2056 mm |
| External Dimension (W × D × H) | 2240 × 2240 × 3800 mm |
Features
- Globally advanced modular design
- Innovative anti-condensation system
- Seamless welded construction
- Automatic water supply system
- Defrost-free low-temperature operation
- Smart post-test mode
Applications
- Walk-in Climatic Chamber FM-WIC-A100 simulates extreme environmental conditions and is widely used in pharmaceuticals and biotechnology, materials science, aerospace industry, renewable energy sector, automotive industry, construction and building materials, electronics, and semiconductor industry.
Accessories
1 Entryport Φ 100mm
1 Silicon stopper for entry port
Automatic water supply
1 Water tank with 20L
1 Water filter
