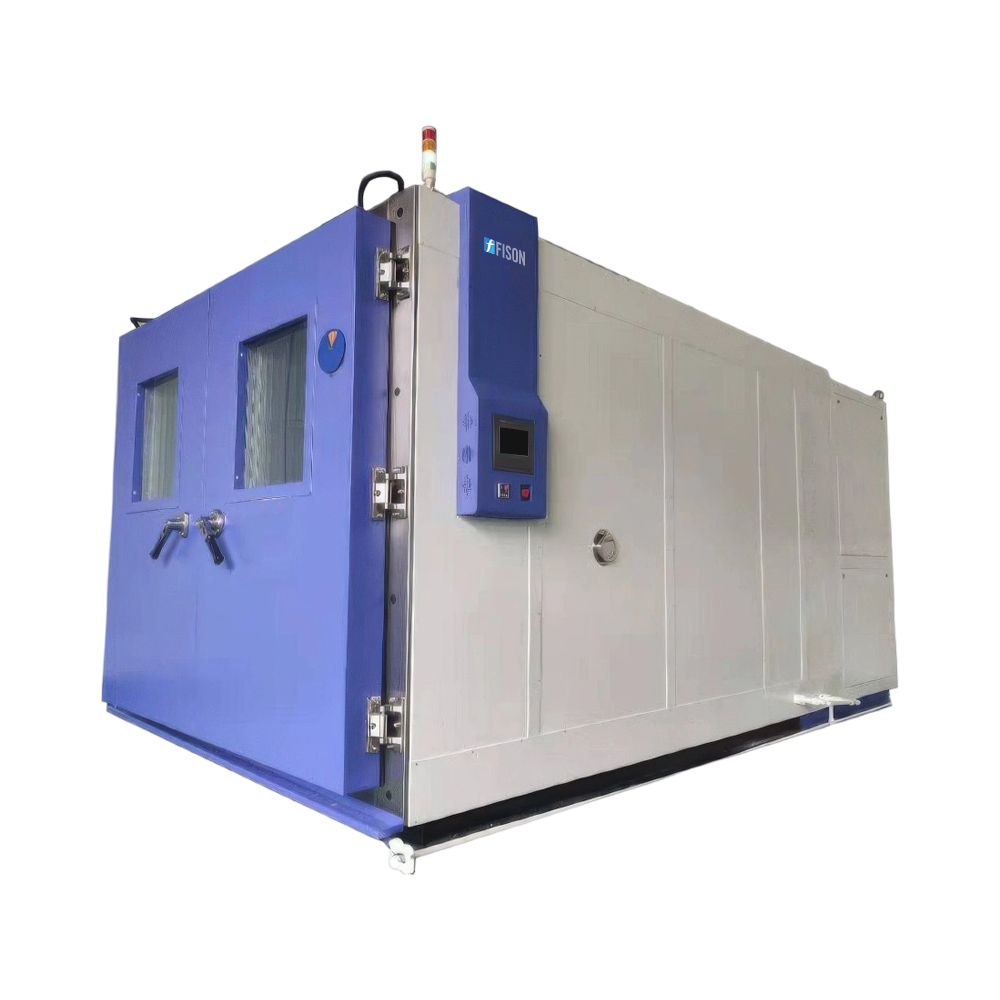

Walk-in Climatic Chamber FM-WIC-A102
Walk-in Climatic Chamber FM-WIC-A102 offers a temperature range of -40 to +100 °C for reliable testing under extreme conditions. It accommodates a spacious 17 m³ test volume, ideal for large or multiple specimens in industrial-scale environmental simulations. It features seamless welded construction for long-term structural integrity and resistance to deformation under extreme conditions. Our chamber also features a 7-inch touchscreen with a 32-bit control system for precise operation and real-time monitoring.
Specifications
| Test Space Volume | 17 m³ |
| Temperature Range | -40 to +100 °C |
| Floor Load | 30,000 N/m³ |
| Humidity Range | 15 to 95 %RH |
| Humidity Fluctuation | ±1.0 to ±5.0%RH |
| Dew Point Temp. Range | +4 to +59 / +4 to +95 °C |
| Heating/Cooling Rate | 1 to 5℃/min |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Temperature Homogeneity | ±0.5 to ±3.0 °C |
| Cooling Method | Air-cooled/Water-cooled |
| Power Supply | AC380V ±10%, 50Hz, 3/N/PE |
| Door Dimensions W × H | 900 × 1900 mm (Single door) |
| Test Space Dimension (W × D × H) | 2250 × 2500 × 3032 mm |
| External Dimension (W × D × H) | 2490 × 2740 × 4900 mm |
Features
- Advanced modular design
- Anti-condensation technology
- Overheat protection sensors
- Water shortage alert function
- Frost-free low temperature operation
Applications
- Walk-in Climatic Chamber FM-WIC-A102 simulates extreme environmental conditions and is widely used in pharmaceuticals and biotechnology, materials science, aerospace industry, renewable energy sector, automotive industry, construction and building materials, electronics, and semiconductor industry.
Accessories
1 Entry port Φ 100mm
1 Silicon stopper for entry port
Automatic water supply
1 Water tank with 20L
1 Water filter
